Product Introduction

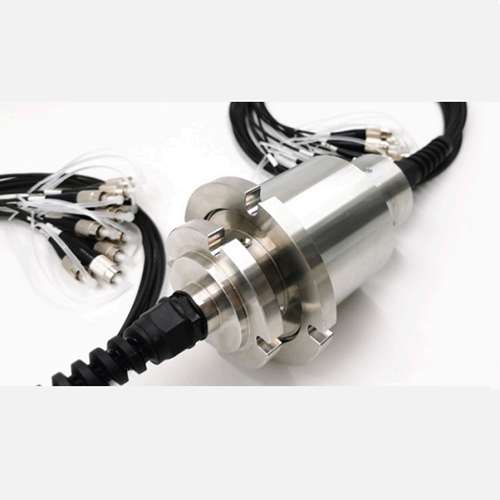

The FRM series is a high-density channel product that can be configured with single-mode, multi-mode, or single-multi-mode hybrid fibers. Products with resistance to environmental factors such as shock, vibration, high and low temperatures are available. The product line includes two extended models, FRMA and FRMB.
FRMA features a tail fiber outlet and often used for 8 or more channels, with up to 60 channels available.
FRMB features a flange port, without tail fiber output, and can be configured with 2 to 4 channels.
Elements Required for Ordering
FRM 1-2-3-4-5-6-7/8
Example 1:FRMA6-9/125-1310-1.2m-Φ2.0K-FC/PC ; Example 2: FRMB4-9/125-1550-FC/PC
| 1 Model Type | 2 Fiber Type | 3 Operating Wavelength | Tail Fiber |
| A (Output Type) B(Flange Port Type) | 9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode) | 850 1310 1550 | 4 Tail Fiber: length 1.2m, S (customer specified) 5 Package: Φ0.9mm, Φ2mm, Φ3mm, K= armor-clad 6 Connector Type: FC, ST, SC, LC, N= no connector 7 End Face Type: PC (flat), APC (angled) |
Main Technical Performance
| Indicator Name | Value |
| Bandwidth | ±50nm |
| Wavelength | 1310/1550(SM);850/1310(MM) |
| Insertion Loss (Room Temperature) | ≤3.5dB |
| Insertion Loss Fluctuation | ≤1.5dB |
| Return Loss | ≥40dB(SM) |
| Power Handling | ≤23dBm |
| Tensile Strength | ≤12N |
| Rotation Speed | 0 ~ 300 rpm (higher speeds can be customized) |
| Estimated Lifetime | > 100 million rotations |
| Operating Temperature | -20 ~ 60ºC (-40 ~ 85ºC optional) |
| Storage Temperature | -50 ~ 85ºC |
| Weight (excluding tail cable and connector) | 1.6kg |
| Vibration and Impact Standard | GJB150 Land Mobile |
| Protection Class | IP54(IP65,IP67 optional) |

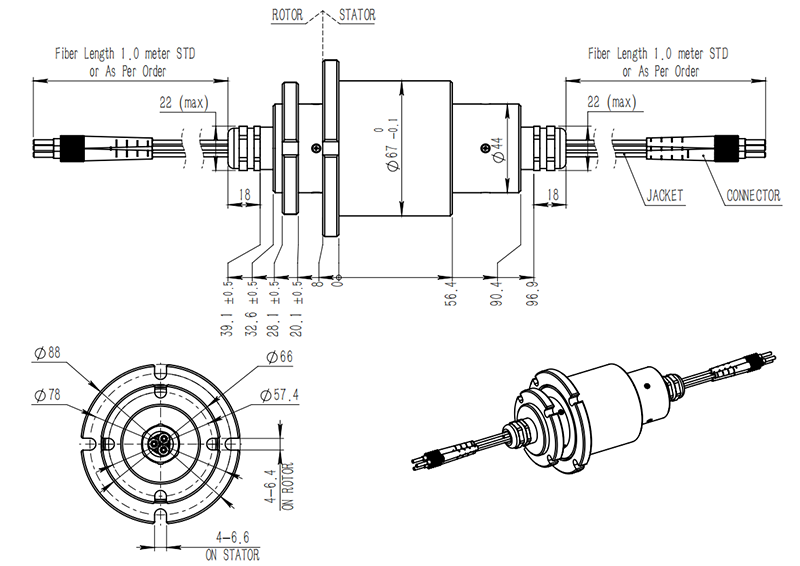

FRMA Dimensions

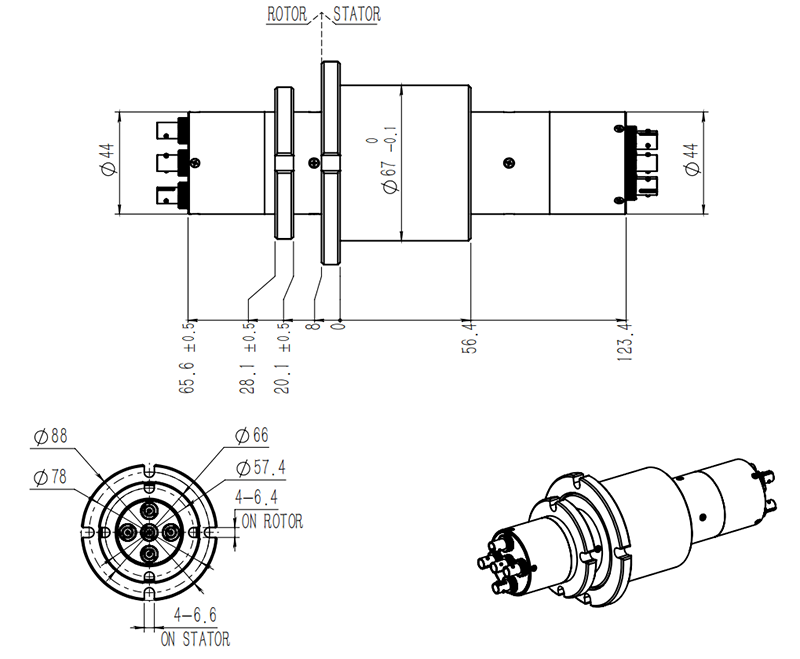

FRMB Dimensions
