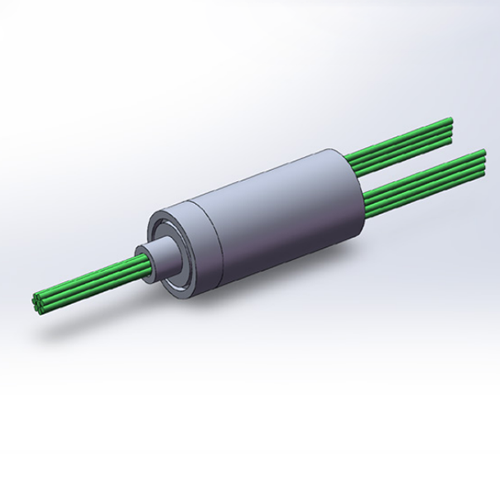

OD 6.5 mm Conductive Slip Ring

Model: HXZ-6.5
Main Body Outer Diameter： 6.5
Circuits: 4/6/8/12
Length:8/10/11.8/15.6
Product description: OD 6.5 mm Conductive Slip Ring
INQUIRY

Product Introduction

This slip ring features a modular design with 4 to 12 circuits. It has a compact structure with a main body diameter of only 6.5mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.

Main Technical Performance

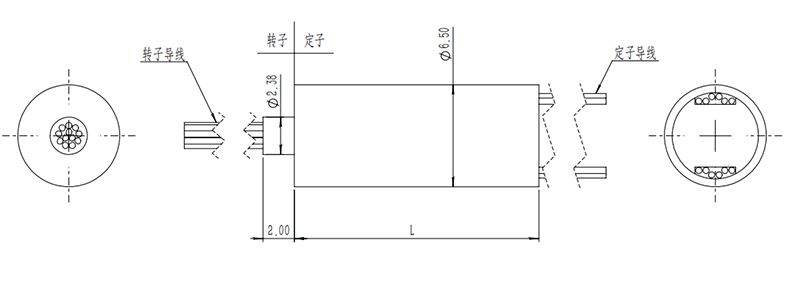

Specifications Sheet
Model	Circuits	Length	Main Body Outer Diameter
HXZ-6-4X	4	8	6.5
HXZ-6-6X	6	10	6.5
HXZ-6-8X	8	11.8	6.5
HXZ-6.5-12X	12	15.6	6.5
Conductive Parameters
Operating Voltage		48V AC/DC
Contact Resistance Variation		≤15mΩ(at 50rpm)
Dielectric Strength		≥100VAC@50Hz
Insulation Resistance		≥100MΩ@100VDC
Wire Length		Rotor:250±5mm Stator:250±5mm
Mechanical Parameters
Operating Temperature		-20℃～ +65℃
Operating Humidity		≤60%RH
Protection Level		IP40
Operating Speed		0 ～ 100rpm
Service Life		≥1 million revolutions
Conductive Contact Material		Precious metals
Housing Material		Stainless steel
Other Requirements		Full inspection

Wire Specifications and Color Code Table
Model	Wire Specifications	Color Code
HXZ-6.5-4X	Ø0.5-AWG30 silver-plated Teflon wires	1. Black	2. Brown	3. Red	4. Orange
HXZ-6.5-6X	Ø0.5-AWG30 silver-plated Teflon wires	1. Black	2. Brown	3. Red	4. Orange	5. Yellow	6. Green
HXZ-6.5-8X	Ø0.5-AWG30 silver-plated Teflon wires	1. Black	2. Brown	3. Red	4. Orange	5. Yellow	6. Green
HXZ-6.5-8X	Ø0.5-AWG30 silver-plated Teflon wires	7. Blue	8. Purple
HXZ-6.5-12X	Ø0.4-AWG32 silver-plated Teflon wires	1. Black	2. Brown	3. Red	4. Orange	5. Yellow	6. Green
HXZ-6.5-12X	Ø0.4-AWG32 silver-plated Teflon wires	7. Blue	8. Purple	9. Gray	10. White	11. Light Red	12. Light Blue
