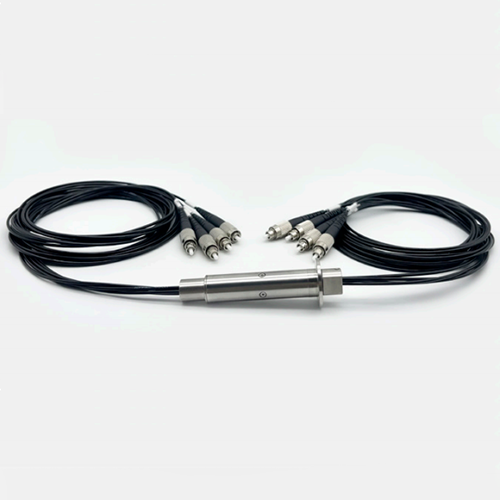

The FR19 fiber optic rotary joint is currently one of the smallest multi-channel fiber optic rotary joints, with a main body diameter of only 19mm, capable of accommodating up to 7 channels. It offers the option of single-mode, multi-mode, or a combination of both, and products with environmental resistance (shock, vibration, high and low temperatures) are also available.
Elements Required for Ordering
FR19 1-2-3-4-5-6/7
Example:FR19-4-9/125-1310-1- Φ2.0K-FC/PC
| 1 Channel | 2 Fiber Type | 3 Operating Wavelength | Tail Fiber |
2 ~ 7 | 9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode) | 850 1310 1550 | 4 Tail Fiber: length 1.2m, S (customer specified) 5 Package: Φ0.9mm, Φ2.0K, Φ3.0K, K= armor-clad 6 Connector Type: FC, ST, SC, LC, N= no connector 7 End Face Type: PC (flat), APC (angled) |
Main Technical Performance
| Indicator Name | Value |
| Bandwidth | ±50nm |
| Wavelength | 1310nm/1550nm(SM);850nm /1310nm(MM) |
| Insertion Loss (Room Temperature) | ≤4.0dB |
| Insertion Loss Fluctuation | ≤2.0dB |
| Return Loss | ≥40dB(SM) |
| Power Handling | ≤23dBm |
| Tensile Strength | ≤12N |
| Rotation Speed | 0 ~ 300 rpm (higher speeds can be customized) |
| Estimated Lifetime | > 100 million rotations |
| Operating Temperature | -20ºC~ 60ºC (-45ºC~ 85ºC optional) |
| Storage Temperature | -45ºC~ 85ºC |
| Weight (excluding tail cable and connector) | 120g |
| Vibration and Impact Standard | GJB150 Land Mobile |
| Protection Class | IP54(IP65,IP67 optional) |

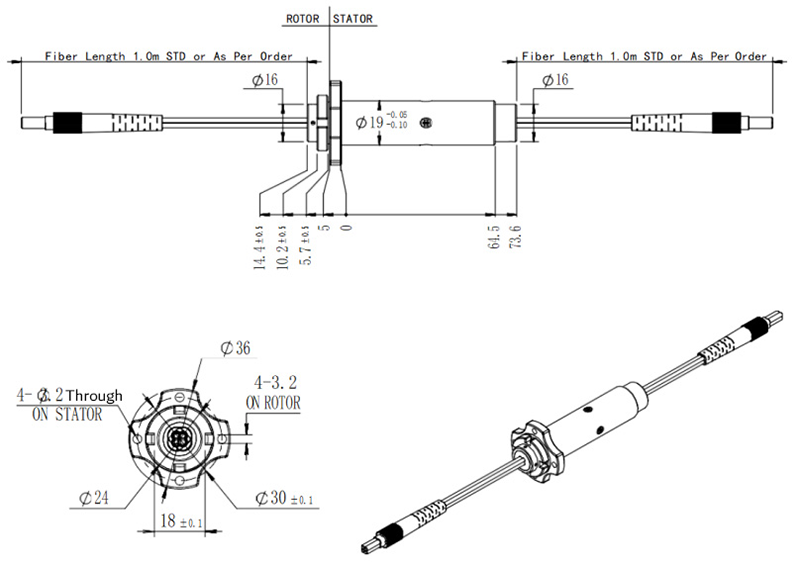

FR19 Dimensions
