UV-visible Analyzer

Descriptions

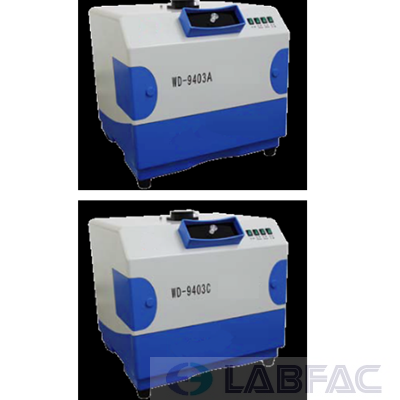

WD-9403A is a basic device for visualizing fluorescence stained gels. It is suitable for Lab of University or hospital, Scientific research organization. The lamphouse is white light transmission lamphouse that has a strong white light illumination. WD-9403A can provide UV light with two different wavelengths. Start speed of the lamps is quick and no stroboscopic lamps during the starting.

WD-9403C is a basic device for visualizing fluorescence-stained gels. It is suitable for Lab of University or hospital, Scientific research organization. WD-9403C is mainly used for observing and taking picture of the gel sample, etc.

Features

• Dark chamber design;

• Dark lab is not necessary;

• Safety for the user;

• Drawer-mode light boxes, convenient for use;

• Strong and durable;

• Offers 2 wavelength of UV light for different requirements;

• Simple and easy to use.

• Choose from 254nm,302nm or 365nm wavelength;

• Drawer type light box, convenient to use;

• Strong and durable;

• Has dark room and can be used in the daylight room;

• Can take the pictures with digital camera.

• Inside box can light and has camera bracket (camera system is optional parts)

Specifications

• The filter dimension of the white light (actual area): 230 × 190(mm);

• Window radiant flux density of UV light: ≥10 μ W /cm2

• Wavelength (UV light): 254nm and 365nm;

• Power of UV light: 28W

• The light transmission of UV glass: wavelength of UV (230nm-400nm) ≥40%;

• Power source: ~ 220V±22V 50Hz±1Hz;

• Visible light transmission area: 200x200mm

•Dimensions (L X W X H): 456x430x426 (mm);

•Net weight: about 20.00 KG.

• Transmission size:200 × 200 (mm);

• Wavelength (UV light): Reflex wavelength:254nm and 365nm; transmission light wavelength:302nm;

• Power of UV light: 302nm: 8W, 254nm: 28W, 365nm:28W;

• Light transmittance: Light transmittance of wavelength (230nm-400nm) ≥40%;

• Power source: Voltage of power source: AC 220V±22V; Frequency: 50Hz±1Hz;

• Dimensions (LXWXH): 456 X 430 X 426 (mm);

• Net weight: about 20.00KG.

Application

It is a instrument for providing white light and UV light, and for observing and taking the pictures of the protein gel electrophoresis results.

For viewing and taking the pictures of nucleic acid gel

electrophoresis results.
