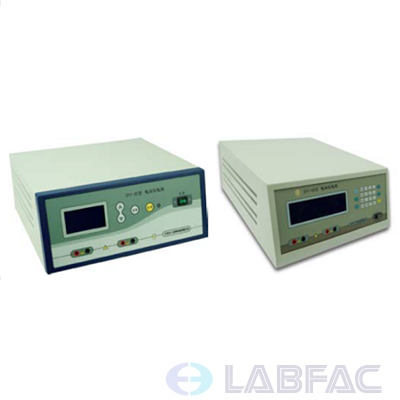

Bistable Timing Electrophoresis Power Supply

Name

Double stable electrophoresis power supply

Computer three constant multi-electrophoresis power supply

Features

• We adopt the microcomputer processor as the control center of DYY-8C; ON/OFF switch. DYY-8C has the following strong points: small, light, high output-power, stable functions;

• The LCD can show you the following info.at the same time: voltage, electric current, pre-assigned time, etc.;

• It has the warning function of timing;

• It has the function of storing the operation parameters of last time;

• It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs;

• It has the protection function when it is under the circumstances of the unloaded, overload, sudden load change and when it is beyond the limitation.

• Parameters can be adjusted finely during the running

• Output terminals: 2 pairs in parallel

• The electrophoresis power supply is wholly controlled by microcomputer, big LCD;

• High-powered ON/OFF switch is the output core of the electrophoresis power supply. High output power, high capability of load, high precision of the control and the high stability of the function;

• The states of constant voltage, constant electric current and constant power can be converted into one another to ensure the safety;

• It has the protection functions of over voltage, short circuit, overload, sudden load change, unloaded, leaks electricity, etc.;

• It has the function of memory for convenient use and programming with a minimum of time and effort;

• Parameters can be adjusted finely during the running;

• Output terminals: 2 pairs in parallel;

Specifications

• Power requirement: A.C. 220V±10% (50Hz ±2%);

• Input power: about 200 VA;

• Output voltage: (5-600) V (Increase or decrease:1V/step);

• Output current: (2-200) mA (Increase or decrease:1mA/step);

• Output power: 120 W;

• Stability: constant voltage ≤1%; constant current ≤2%;

• Adjustment rate: constant voltage ≤2%; constant current ≤3%;

• Size (W x D x H): 315 x 290 x 128 (mm);

• Weight: about 5.0 KG

• Power source: A.C. 220V±10% (50Hz±2%);

• Input power: about 350 VA;

• Output voltage: (10 - 3000) V, (Increase or decrease: 1V/step);

• Output current: (3 - 300) mA, (Increase or decrease: 1mA/step);

• Output power: (5 - 200) W, (Increase or decrease: 1W/step);

• Size (W x D x H): 303 x 364 x 137 (mm);

• Weight: about 7.5 KG.

Application

Suitable for conventional protein, DNA, RNA gel electrophoresis.

Suitable for series of electrophoresis, including DNA sequence analysis, Thin layer isoelectric focusing etc.
