Petroleum Products Spontaneous Ignition Point Tester

Model: PT-XH-0642
Input voltage: AC 220V ± 10% 50Hz
Temperature range: 100 ~ 600 ℃ can be arbitrarily set
Temperature accuracy: ± 1 ℃
Product description: Petroleum Products Spontaneous Ignition Point Tester
INQUIRY

Introduction:

This instrument is designed and manufactured according to oil industry standards "liquid petroleum and petrochemical products ignition point determination," Suitable for ignition point required liquid petroleum and petrochemical products, such as: heat transfer fluids, flame retardant hydraulic fluids, flame retardant turbine oil, transformer oil flame.

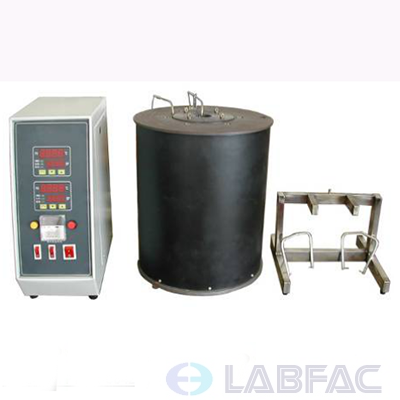

The instrument is composed of a metal crucible furnace, furnace precision smart temperature controller, electric control box, the inner temperature detector, timer, pump, furnace surface side mirrors, special needle, flasks and others. Comply with the standard requirements for instruments.

Technical parameters

1. Input voltage: AC 220V ± 10% 50Hz

2. Temperature range: 100 ~ 600 ℃ can be arbitrarily set

3. Temperature accuracy: ± 1 ℃

4. Heating power: 3800W

5. Pump: 18W

6. Timer: 10 minutes Times News may be required at any other time set

7. Ambient temperature: Around room temperature 25 ℃

8. Relative humidity: <85% RH
