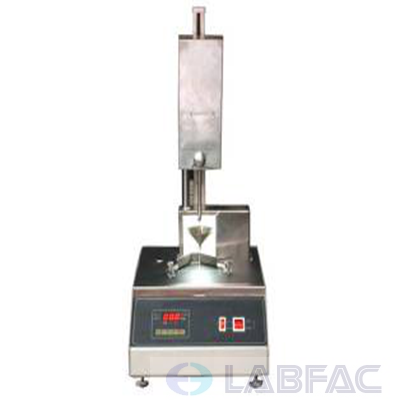

Grease Penetration Asphalt Penetration Tester

Model: PT-XH-140C
Input power: 220V AC ± 10%, 50Hz
Power: 50W
Falling distance: 0 ~ 65mm
Product description: Grease Penetration Asphalt Penetration Tester
INQUIRY

Introduction:

For the determination of grease and petroleum grease consistency, asphalt hardness.

The cone penetration, penetration tester uses the program to control the motor drive circuit to accurately adjust the cone position. Measurement uses a microcomputer control, within a specified time, to measure the vertical depth of the test material by digital stroke sensor, and can display the results of three measurements, calculate the mean value of three measurements. Instrument is equipped with lights, to clearly see the needle position, easy to use and reliable.

Technical Specifications

Description	Parameters
Input power	220V AC ± 10%, 50Hz
Power	50W
Falling distance	0 ~ 65mm
Measuring indication accuracy	± 0.1mm
The ambient temperature	About 25 ℃
Relative humidity	<85% RH
