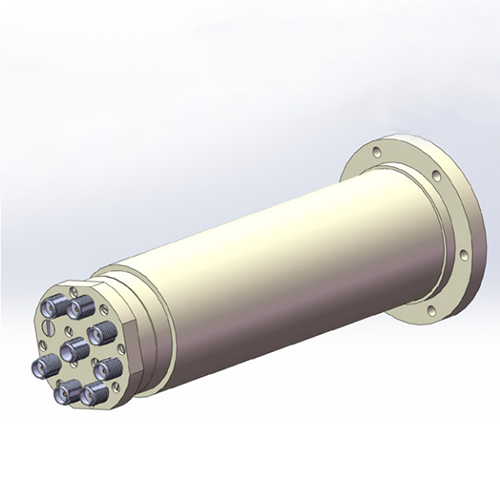

Product Introduction
Operating frequency range is 8 channels DC-5GHz, with SMA-F interfaces on both ends. Voltage standing wave ratio ≤ 1.6, insertion loss ≤ 1.1dB. Channel isolation ≥ 60dB, operating temperature -40ºC~ +75ºC . Maximum speed is 60rpm, and the operating lifespan is ≥ 5 million rotations. Installation diameter is 41.9mm, which is convenient for conductive slip ring integration and assembly.
Main Technical Performance
| Product Specification | ||||
| Product Specifications | Channel 1 | Channel 2 | Channel 3 | Channel 4 |
| Interface Type | SMA-F(50Ω) | SMA-F(50Ω) | SMA-F(50Ω) | SMA-F(50Ω) |
| Frequency Range | DC-5GHz | DC-5GHz | DC-5GHz | DC-5GHz |
| Peak Power | 200W | 200W | 200W | 200W |
| Average Power | 10W | 5W | 30W@1GHz | 5W |
| Voltage Standing Wave Ratio (Max) | 1.4 | 1.5 | 1.5 | 1.6 |
| Voltage Standing Wave Ratio Fluctuation (Max) | 0.05 | 0.1 | 0.1 | 0.1 |
| Insertion Loss (Max) | 0.7dB | 1.1dB | 0.8dB | 0.1dB |
| Insertion Loss Fluctuation (Max) | 0.1dB | 0.15dB | 0.15dB | 0.15dB |
| Isolation (Min) | 60dB | |||
| Rotational Torque (Max) | 0.3Nm (at room temperature) | |||
| Operating Temperature | -40ºC~ +75ºC | |||
| Humidity (Operating Environment) | ≤95%RH | |||
| Protection Level | IP51 | |||
| Maximum Rotational Speed | 60rpm | |||
| Minimum Service Life | 5 million rotations | |||

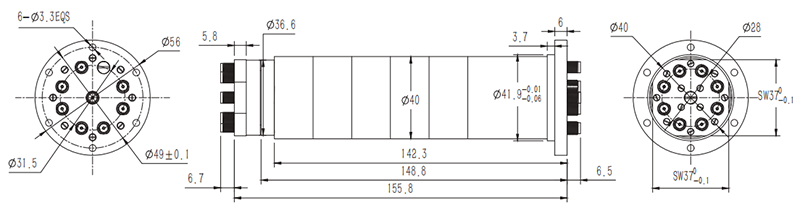

SRF-801 Dimensions
