Kinematics Viscometer

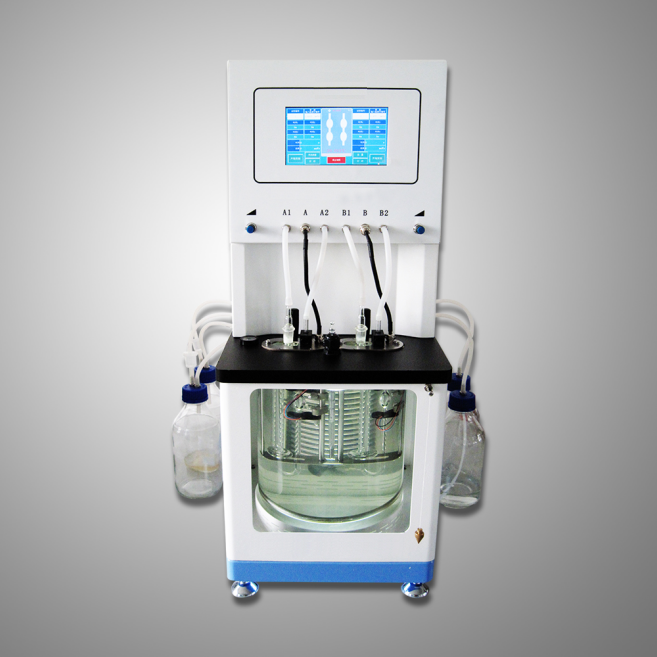

Automatic Kinematic Viscosity Tester

Model:PT-HK-265F
Heating power: 1500W
Temperature accuracy: ± 0.02 ℃
Bath hole number: 2 holes
Product description: Automatic Kinematic Viscosity Tester
INQUIRY

Overview

PT-HK-265F automatic viscosity tester (with cleaning), in line with GB/T 265, ASTM D445, ASTM D446, ASTM D4603, GB/T 14190 test methods, can choose to customize the different specifications of the capillary viscometer, is suitable for the determination of the kinematic viscosity of the liquid petroleum products (refers to the Newtonian liquid).

Functional features

1. Automation of the integrated design, can be independently carried out at the same time 2 groups of tests, automatic completion of the injection of oil into the sample,

pinch point detection, timing calculations, cleaning and drying and other steps

2. Adopting imported high-temperature photoelectric detector and high-precision PT100 sensor.

3. In line with the national standard GB / T 265 standard 4 tests are automatically calculated to reject the results of the excessively poor

4. Built-in storage can store a large number of viscometer coefficient number, test results and other information

Technical parameters

1. Electricity: AC 220V±10% 50Hz

2. Heating power: 1500W

3. Temperature accuracy: ± 0.02 ℃

4. Temperature control range: 20 ℃ ~ 100 ℃ (built-in cooling tube,

if necessary, with a low-temperature circulating bath)

5. Bath hole number: 2 holes

6. Data processing: USB export
