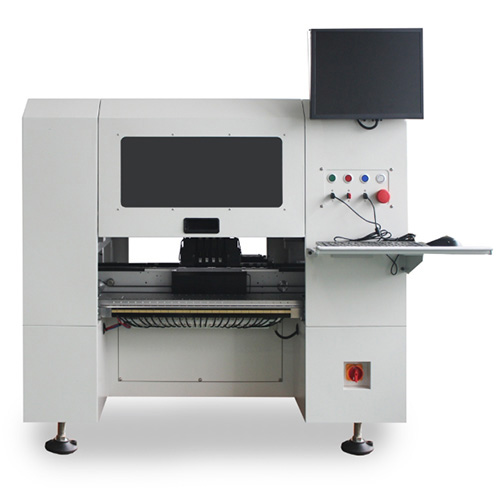

SMT Making Machine

4 Heads Pick and Place Machine with visual system-400*350mm 10000CPH 50 tape feeding stacks

Model: SUNY-650
Product description: 4 Heads Pick and Place Machine with visual system-400*350mm 10000CPH 50 tape feeding stacks
INQUIRY

Introduction

SUNY-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components, integrated operation with built-in industrial computer.

Specification

Dimensions	1280mm(L)×1190mm(W)×1050mm(H)
Weight	310kg
Power Supply	AC220V (50Hz, single phase), 2.1kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Vacuum generator
Mounting Head Quantity	4
Mounting Speed	10000cph(optimal)
Mounting Accuracy	±50μm@μ±3σ/chip
Control Accuracy	5μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	400mm(L)×350mm(W)
PCB Conveying	3-section-rail automatic conveying
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration
Transmission System	Ball screw + linear guide
Feeding System	50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2
