Overview

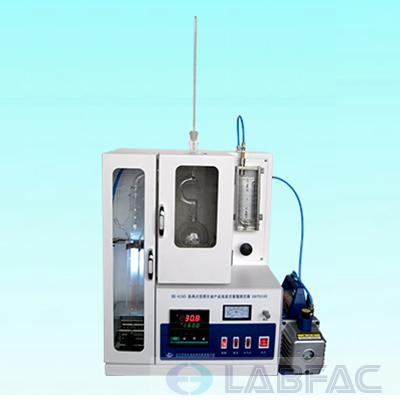

PT-HK-1004 Vacuum Distillation Apparatus conforms to the SH/T 0165 Standard Test Method for Distillation of Petroleum Products at Reduced Pressure. It is used for measuring at reduced pressures, of the range of boiling points for petroleum products and biodiesel that can be partially or completely vaporized at a maximum liquid temperature of 400°C.
Features
1. The apparatus adopts quartz tube electric furnace heating, antioxidative, corrosion resistant, high thermal efficiency. Oil splashing prevented.
2. Thermoregulation method adopts stepless voltage regulation by solid-state voltage regulator.
3. Use air bath as the cylinder bath, corrosion prevented.
4. Measuring cylinder slot adopts stainless steel material, corrosion prevented.
5. Digital display the temperature of bath, high precision of temperature control.
6. The apparatus is equipped with vacuum pump, it features small size, light weight, low noise, easy and reliable operation
7. Easy operation with rational construction and attractive appearance.
Technical Parameters
1.Rated voltage: AC220V±10% 50Hz
2.Heating power: 0~1000W continuously adjustable
3.Thermo regulation: Voltage regulation by solid-state voltage regulator
4.Ranges of temperature: Stepless control: room temperature~90°C
5.Mode of temperature control: Digital display controller
6.Accuracy of temperature control: ±3°C
7.Electric furnace lift: Manual adjustment
8.Flask:250mlMeasuring cylinder: 100ml
9.Ambient requirements: Temperature: 10~40°C; Humidity≤85%
10. Net dimension: 436*335*555mm,16kg
