Fluorescent optical sensor, has the following salient features:
● Measurement does not consume oxygen, not affected by the sample flow rate, measurement stability.
● No electrolyte and electrode film, without preheating and regular calibration, easy to use.
● The fluorescent cap is coated with a light-shielding layer that is not affected by external light sources. Non-chemical sensors are not affected by chemicals such as heavy metal ions, H2S and NH4 in water.
● In addition to mechanical damage (such as scratch the light barrier), the fluorescent cap has a service life of up to 8000 hours. Supporting electrode calibration kits, calibration and maintenance more convenient and reliable.
Smart meters, with the following salient features:
● Automatic temperature compensation, automatic pressure compensation, manual salinity compensation.
● Large white LCD backlight, clear display.
● Stable reading mode and automatic lock display mode.
● IP57 waterproof grade, standard equipment suitcase.
Parameters
Dissolved oxygen |
Measuring range |
(0-20.00) mg/L (ppm), (0-200.0) % |
Resolution |
0.01/0.1mg/L (ppm), 0.1/1%, |
|
Accuracy |
±2% of reading value or±2% air saturated,Whichever is greater ±2% of reading value or±0.2 mg/L,Whichever is greater |
|
Response time |
≤30s(25℃,90% response) |
|
Calibration point |
Saturated oxygen and zero oxygen |
|
Temperature compensation |
Automatic,(0 to 50.0)℃ |
|
Air pressure compensation |
Automatic,(60~120)kPa |
|
Salinity compensation |
Automatic or manual,(0~45)ppt |
|
temperature |
Measuring range |
(0 to 50.0) ℃ |
Resolution |
0.1 ℃ |
|
Accuracy |
±0.5℃ |
|
Others |
power supply |
3*AA batteries AA(1.5V×3) |
IP rating |
IP57 |
|
Size and weight |
Meter:(88×170×33) mm/313g Carrying case:(360×270×76) mm/1.3kg |
|

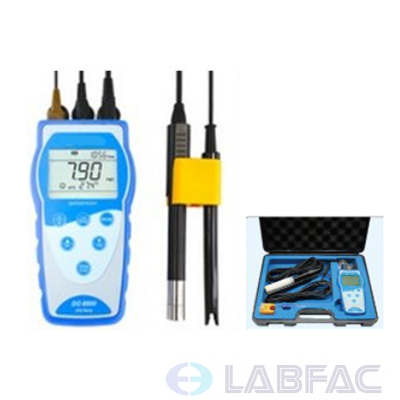

Product set |
DO8500 Meter DO803 DO sensor(3M cable) 2301-3M salinity electrode Calibration sleeve+carrying case Combination probe cap USB cable+sofeware CD |
