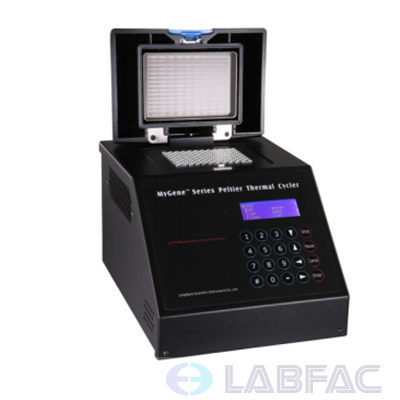

PCR Instrument

Peltier-based Thermal Cycler

Model	PCR-MG96+
Block Capacity	96wells×0.2ml+77wells×0.5ml
Technology	Peltier-based Technology
Display	Large-size Blue LCD
Temperature
Block Temperature Range	0℃～99℃
Max. Heating Rate	3℃/s
Max. Cooling Rate	2℃/s
Temperature Uniformity	≤±0.2℃
Temperature Accuracy	≤±0.2℃
Display Resolution	0.1℃
Mode of Temperature Control	Sim-tube & Block mode
Ramping Rate Adjustable	0.1℃ ～ 3℃
Programming
Max. no. of programs	125 Typical Programs
Max. No. of Cycle	99
Time Increment/Decrement	1～60s Long PCR available
Temp. Increment/Decrement	0.1～10.0℃ Touchdown PCR available
Auto Pause	Yes
Auto Restart	Yes
Hold at 4℃	Yes, Forever
Running Status Display	Yes
Heated Lid
Heated Lid Temperature	105℃
Height of Heated Lid	Stepless Adjustment
Auto Shut-Off	When Block Temp. is below 30℃ or after finish running
Other Features
Power Supply Range	Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption	Max. ：500W
Dimension（L×W×H）	315×240×275mm
Net Weight	9.8kg
Additional In-Situ Function	A set of additional in-situ plate available for In-situ PCR experiments.
