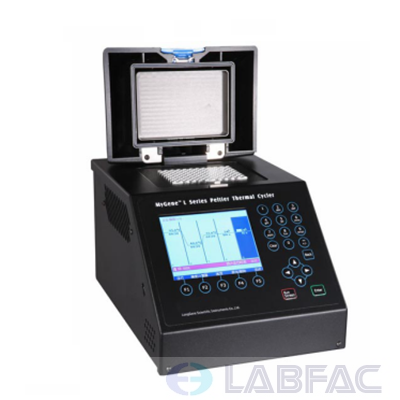

Peltier-based Thermal Cycler

Model

PCR-MGL96+

Block Capacity

96wells×0.2ml+77wells×0.5ml

Heating and Cooling Technology

Newest Generation Peltier-based technology

Sample Capacity

0.2ml PCR tubes,0.5ml PCR tubes,Strips, 96wells PCR plate, In-situ Plate

Display

5.7” graphical color display of protocols (320×240 pixel, 256 color)

Language

Bilingual: English and Chinese

USB flash drive

Unlimited storage of protocols with USB flash drive

Communications

USB2.0 and RS232

Additional In-Situ Function

Available with a set of additional In-situ Plate

Temperature

 Block Temperature Range

0℃～100℃

Max. Heating Rate

4℃/s

Max. Cooling Rate

3.5℃/s

Temperature Uniformity

 ≤±0.2℃（30 sec after reach Temperature point set）

Temperature Accuracy

≤±0.2℃（35℃-100℃）

Display Resolution

0.1℃

Mode of Temperature Control

Sim-tube & Block mode

Ramping Rate Adjustable

Yes

 Programming

Max. number of programs

Max. 120 programs onboard，Unlimited storage of protocols with USB flash drive

Max. Step

30 Steps, multiple nesting cycle available

Max. Cycle

100 Typical Cycles  (multiple nesting 60000 cycles)

Time Increment/Decrement

1～120 sec，Long PCR available

Temp. Increment/Decrement

0.1～10.0℃,Touchdown PCR available

Auto Pause

Yes

Auto Restart

Yes

Hold at 4℃

Yes, Hold Forever

Running Status Display

Yes

Real Time Display

Yes, Battery Buffered

 Heated Lid

Height of Heated Lid

Steplessly Adjustable Lid, accommodates a wide range of PCR tubes and plates

Heated Lid Temperature Range

30℃～105℃

Auto Shut-Off

When Block Temp. is below 30℃ or after finish running

 Other Features

Power Supply Range

Wide Range Power Supply 175V ~ 275V,50-60Hz

Power Consumption

Max. 600W

Approvals

ISO 9001:2000, CE

Dimension（L×W×H）

335×240×270mm

Net Weight

9.8kgs
