Particle Counter

Summary:

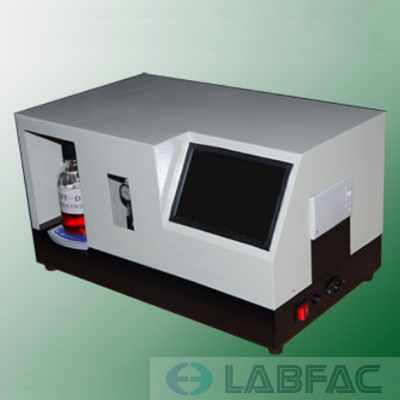

Winner 602 particle counter is one kind of particle size testing instrument, which is specialized in detecting and analyzing liquid particle size, cleanliness and pollutant. It adopts light blockage method (light shading) principle, judge the size and quantity of particulate matter in unit liquid according to sheltering condition of particle in liquid from laser beam, quoting oil liquid industry classical approach NAS1638 standard. It adopts liquid crystal display, touching screen operation, and build in mini printer, simple and convenient operation, could directly test and print the result without connecting computer and printer.

Performance feature:

Light blockage method test principle

It adopts light blockage method principle, test the size and quantity of particle according to pulse height and number generated from the shelter of light beam particle from light, which is the specifying method of many industries related liquid cleanliness evaluation criterion.

Dual control sampling system

It quotes precision plunger pump and ultra precise flow electromagnetism control system, realize dual control of constant sampling speed and precise sampling volume, ensure the correct measuring sample volume, lay the foundation of testing accuracy.

Magnetic stirring manner

It adopts magnetic stirring manner (bottom stir) which is universal in international light blockage method, compared with upper stir, magnetic stirring manner has the features of even stir, not easily bringing air bubbles.

Portable operation method

It adopts large screen liquid crystal display, touching screen menu operation, and print the result through build-in printer, simple and convenient operation, could directly test and print the result without connecting computer and printer.

Application industry

Winner 602 particle counter is applied to these fields, such as Aeronautics & Astronautics, electric power, petroleum, chemical engineering, transportation, port, metallurgy, machinery, automobile making, refrigeration, electron, semiconductor, engineering machinery, hydraulic system, etc, which detects solid particle pollution degree on the oil fluid, such as hydraulic oil, lubricating oil, transformer oil (electric insulating oil ), steam turbine oil, gear oil, engine oil, aviation kerosene, water machine hydraulic oil, etc, and also detect the insoluble particle on organic solvent, polymer solution, which is also used in the evaluation of particulate matter in water in environmental protection industry.

Technical parameters
