Brief introduction:

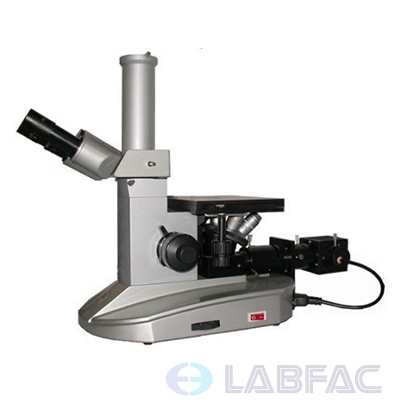

5XB-PC metallographic microscope is mainly used for identification and analysis of metallic internal structures. It is an apparatus of great importance for products quality identification in industry. 5XB-PC metallographic microscope is equipped with a camera which can photograph the metallographic diagrams, measure&analyse the diagrams, and edit, output, restore and manage the diagrams.
Technical parameters:
1, Eyepiece tube
Trinocular eyepiece tube: 30 º tilt, eye pupil adjustment range 55mm-75mm
2, Eyepiece: 10 (¢ 18mm)
3, Five-hole objective lens converters: PL4X, PL10X, PL20X, PL40X, PL100X (optional PL60X)
4, Loading platform
Square platform: 150 * 200mm
Mobile range: 15 * 15mm
5, Lighting
Kohler illumination, 6V20W halogen lamp, adjustable brightness
Sets of instruments:
1, Main body: 1 set
2, Trinocular tube: 1
3, Objective lens: PL4X, PL10X, PL20X, PL40X, PL100X: 1 for each
4, Eyepiece (10X / 18mm): 1 pair
5, Loading platform Spring: 1
6, Filter: 2
7, Loading slide (φ10, φ20): 1 for each
8, Bromine tungsten lamp 6V20W: 2
9, Hong Tar: 1 bottle
10, Papers: 1 set
Optional accessories:
Eyepiece: 12.5X eyepiece, 10X flat-field division eyepiece ( resolution 0.1mm)
Objective micrometer, 80X lens, 50X lens
Acquisition card, adjuster lens, image analysis software, printers, digital camera
