PCB Film Process Machine

  • Laser Plottor

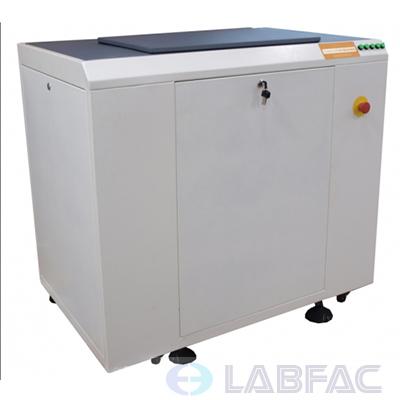

Laser Plottor

Laser Plottor

  • Model: SUNY-ZGH500
  • Usage: light plotting output of laser plotting film
  • Light plotting format: 508mm×660mm
  • Scanning method: parallel imaging by 8 road laser of external cylinder
  • Product description: Laser Plottor
  • INQUIRY

Specification:

  1. Usage: light plotting output of laser plotting film;
  2. Light plotting format: 508mm×660mm;
  3. Scanning method: parallel imaging by 8 road laser of external cylinder;
  4. Scanning precision: 4000dpi--12000dpi;
  5. Imaging time: about 2min;
  6. Repeatability precision: ≤0.01mm;
  7. Loading method: vacuum adsorption, single page loading;
  8. Recording medium: red light helium neon laser films;
  9. Overall dimension: 1190mm×560mm×1020mm;
  10. Power supply: AC220V/50Hz/5A;
  11. Working environment: temperature: 15°C~25°C, humidity: 40~80% (at+20°C), grounding resistance no more than 4Ω;
  12. Weight: 260kg.

Check the video to see how to make the PCB(Printed circuit boards) with our machines:

https://www.youtube.com/watch?v=sQZVaeKhogs

The PCB boards produced by our machines:
