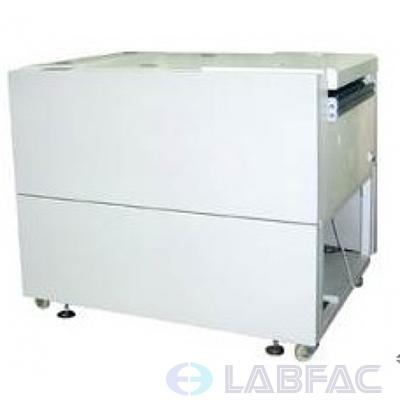

Full Automatic Film-developing Machine

Full Automatic Film-developing Machine

  • Model: SUNY-ZCP500
  • 1.Usage: automatic developing of laser plotting film
  • 2.Developing process: automatic constant temperature level transmission developing
  • 3.Maximum developing width: 550 mm
  • Product description: Full Automatic Film-developing Machine
  • INQUIRY

Specification:

  1. Usage: automatic developing of laser plotting film;
  2. Developing process: automatic constant temperature level transmission developing;
  3. Maximum developing width: 550 mm;
  4. Developing speed: 300-1000 mm/min;
  5. Thickness of developed films: 0.08~0.3mm;
  6. Process time: 80~240s;
  7. Adjusting range of developing time: 20~40s;
  8. Adjusting range of solution temperature: 20-40°C;
  9. Adjusting range of drying temperature: 30-55°C;
  10. Range of adding amount: 30~300 ml/time;
  11. Medicine-loading amount of medicine slot: developer: 11 L fixative: 11 L;
  12. Power supply: AC220V 50Hz/2KW;
  13. Overall dimension: 1243mm×882mm×1057mm;
  14. Weight: 160 KG.

Check the video to see how to make the PCB(Printed circuit boards) with our machines:
https://www.youtube.com/watch?v=sQZVaeKhogs

The PCB boards produced by our machines:
