1. Overview:

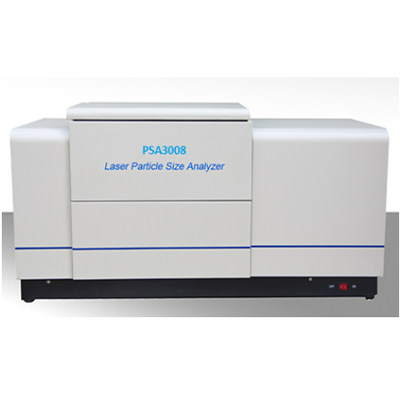

PSA3008 is intelligent dry laser particle size analyzer, manual and fully automatic operation modes. MIE scattering principle as basic, converging light Fourier transform light path, highly stable He-Ne laser and Highly sensitive ring photoelectric detector, guarantee good repeatability and accuracy.
It uses air as dispersion medium, and use turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
2. Main Specifications:
Model |
PSA3008A |
PSA3008B |
|
Standard |
ISO 13320-1:1999;GB/T19077.1-2308;Q/0100JWN001-2013 |
||
Principle |
MIE Scattering Principle |
||
Measuring Range |
0.1μm -2000μm |
0.1μm -1200μm |
|
Detector Channels Number |
100 PCS |
80 PCS |
|
Accuracy error |
<1% (Deviation of D50 on national standard sample) |
||
Repeatability error |
<1% (Deviation of D50 on national standard sample) |
||
Light source |
He-Ne laser (λ= 632.8nm, P>2.0MW Service time>25000hour) |
||
Dispersion |
Dry-turbulence dispersion mode, normal shock wave shear technique |
||
Operation Mode |
Manual & Fully automatic |
||
Feeding |
Automatic vibration feeding |
||
Optical Calibration System |
Automatic |
||
Software function |
Analysis mode |
Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. |
|
Statistic Method |
Volume Distribution, Quantity Distribution
|
||
Statistic Comparison |
Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time.
|
||
User-defined Analysis |
Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries |
||
Test Report |
Word, Excel, Photo (Bmp), Text etc. |
||
Multiple language Support |
Multiple language Support |
||
Intelligent operation |
Better Repeatability after remove human-factor |
||
Test Speed |
<1min per time |
||
Power supply |
220V |
||
Volume |
L105cm×W44cm×H54cm |
||
Net Weight |
58Kg |
3. Main Features:
1) Advanced testing optical path.
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, adopt wearable ceramics improve dispersion system’s working life.
3)Human-based operation mode
Manual and Full automatic, easy choose.
4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, its inching precision is reach to micron level, so light path is always in a good state.
5)Intelligent data analysis unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
6)The results not only show particle distribution, the cumulative value curve and typical particle sizes (D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100, Cumulative percent (bigger than or less than a certain particle diameter).
7)Users can design the test report output and display forms according to industry requirements.
