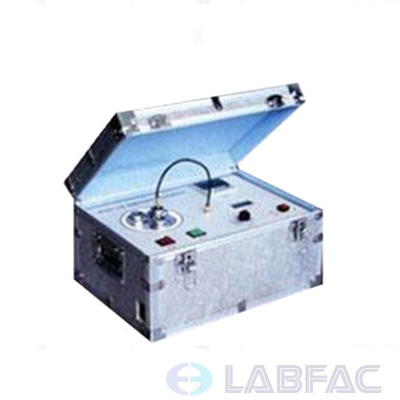

Insulating Oils Volumetric Resistivity Tester

Insulating Oils Volumetric Resistivity Tester

  • Model: PT-SYD-421
  • Measuring voltage: 500V, DC
  • Temperature control power: 300W
  • Temperature control range: 30~100℃
  • Product description: Insulating Oils Volumetric Resistivity Tester
  • INQUIRY

Summary

The instrument is a new instrument specially developed for resistivity determination using the active bridge principle as per industrial standard of People’s Republic of China DL/T421-91 Standard Test Method for Volume Resistivity of Insulating Oils. It has characteristics of simple structure, excellent linearity, high sensitivity, stability, and safety. It is better than the instrument using voltage and current method.


I. Main technical features

1. The instrument is composed of parameters measurement system and oil cup heating control system. Its measurement range is 10 8 19.99×10 13 Ω•cm. It can time, read readings and save test data automatically.

2. Simple structure. Good linearity and linearity. Stable test result. Safe to operate.

3. Excepting to determine the volume resistivity of insulating oils, it can also use to determine resistivity of transformer oil and lubricating oils. It is the best choice to determine volume resistivity of lubricating oils in the power industry, petroleum industry, scientific research institutes, and relative factories and companies.


II. Main technical specifications

1. Measuring voltage: 500V, DC

2. Measuring range: 10 8 19.99×10 13  Ω•cm

3. Repeatability: 1012 Ω•cm ≯25%,    1012 Ω•cm ≯15%

4. Temperature control power: 300W

5. Temperature control range:  30100

6. Temperature control accuracy: ±0.5℃

7. Measuring bias: ≤±10%

8. Electrode cup: 3 pieces

9. Ambient temperature: 040

10.Relative humidity: ≤85%

11.Power supply: AC 220V±10%, 50Hz±1Hz



PT-SYD-421 Insulating Oils Volumetric Resistivity Tester's Reagent and Auxiliary Equipment

No.

Name

Specification

Quantity

Memo

1

Solvent gasoline



2 litres



2

Petroleum ether 60-90

Analytical pure 500ml

3 bottles



3

Normal heptane

Analytical pure 500ml

5 bottles



4

Trisodium phosphate

 Analytical pure 500g

1box



5

Distilled water

3 grades

2 litres




Notes
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
