  • Insulating Oil Breakdown Voltage Tester

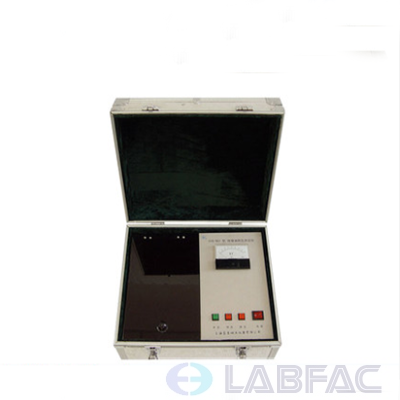

Insulating Oil Breakdown Voltage Tester

Insulating Oil Breakdown Voltage Tester

  • Model: PT-SYD-507
  • Output power: 2kVA
  • Measuring range: 0~75 KV
  • Voltage increasing speed: 3 KV±10%/s
  • Product description: Insulating Oil Breakdown Voltage Tester
  • INQUIRY

Overview

The instrument is designed and made as per national standard of People’s Republic of China GB/T 507 and ASTM D1816 ASTM D877Insulating liquids-Determination of the breakdown voltage at power frequency and industrial standard of People’s Republic of China DL429.9-91, and the characteristics of similar instruments all over the world.


I. Main technical features

Adopting specially designed solid voltage increasing technologies, the instrument is intuitive, simple and convenient to operate, accurate, beautiful, and it has the reasonable structure, excellent repeatability and low system error. The instrument has been widely used in the fields of railway, aviation, power plant, petroleum, and scientific research institutes, etc to determine the breakdown voltage of insulating oils. It is especially suitable for determination on site.


II. Main technical specifications

1. Output power: 2kVA

2. Measuring range: 075 KV

3. Voltage increasing speed: 3 KV±10%/s

4. Distance between electrodes: 2.5 mm

5. Power supply: AC 220 V±10%, 50 Hz

6. Dimension: 330 mm×350 mm×360 mm


PT-SYD-507 Insulating Oils Breakdown Voltage Tester Accessories and Documents List

No.

Name

Unit

Qty

Memo

1

PT-SYD-507 Insulating Oils Breakdown Voltage Tester

Set

1



2

Electrodes cover

Piece

2



3

Standard ruler

Piece

1



4

Oil cup

Piece

1



5

Fuse 15A (Ф5×20)

Piece

2



6

Power line (250V/10A)

Piece

1



7

Operation Manual

Piece

1



8

Quality Certificate

Piece

1



9

Repair Guarantee

Piece

1



PT-SYD-507 Insulating Oils Breakdown Voltage Tester's Reagent and Auxiliary Equipment

No.

Name

Specification

Quantity

Memo

1

Acetone

Analytical pure 500ml

3 bottles



2

Petroleum ether 60-90

Analytical pure 500ml

5 bottles




Notes
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
