Product Introduction
FRSHP Special Fiber Type Fiber Optic Rotary Joint can use large core diameter fibers such as 25/400, 105/125, 200/220, 800/1000 or other customer-specified fibers. fiber optic rotary joints made with these types of fibers can be used in applications that require high power transmission.
Elements Required for Ordering
FRSHP①-②-③-④-⑤-⑥/⑦
Example：FRSHPA-105/125-1064-1.2m-Φ3.0-FC/PC
①Channel | ②Fiber Type | ③Operating Wavelength | Tail Fiber |
25/400(sparse model) | 850 | ④Tail Fiber: length 1.2m, S (customer specified) | |
1 | 105/125(dense multi-modal model) | 1310 | ⑤Package: Φ0.9mm, Φ2mm, Φ3mm, K= armor-clad |
200/220(dense multi-modal model) 800/1000(dense multi-modal model) | 1550 | ⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled) |
Main Technical Performance
| Indicator Name | Value |
| Bandwidth | ±50nm |
| Wavelength Range | 650 ~ 1650nm |
| Insertion Loss (Room Temperature) | ≤2.0dB |
| Insertion Loss Fluctuation | ≤1.0dB |
| Return Loss | ≥30dB |
| Tensile Strength | ≤12N |
| Rotation Speed | 0 ~ 1000rpm |
| Estimated Lifetime | 200 million rpm |
| Operating Temperature | -20 ~ 60ºC (-40 ~ 85ºC optional) |
| Storage Temperature | -50 ~ 85ºC |
| Weight (excluding tail cable and connector) | 20g |
| Vibration and Impact Standard | GJB150 Land Mobile |
| Protection Class | IP54(IP65,IP67 optional) |

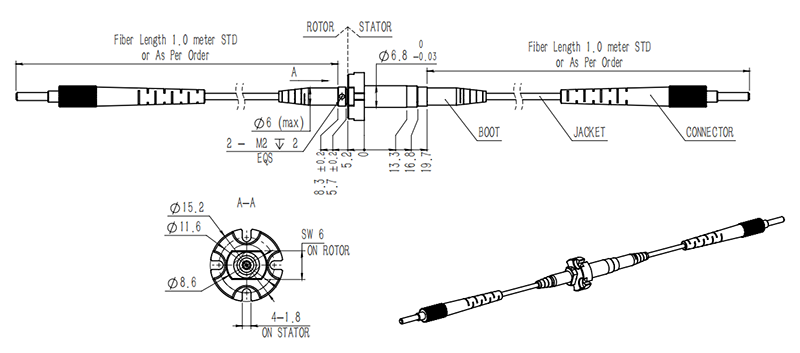

FRSHP Dimensions
