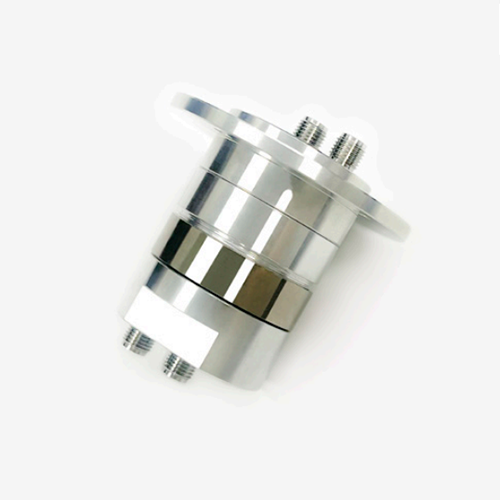

Operating frequency range is DC-18GHz/DC-18GHz, with SMA-F interfaces on both ends. Channel 1: standing wave ratio ≤ 1.5, insertion loss ≤ 1.2dB. Channel 2: standing wave ratio ≤ 4.5, insertion loss ≤ 3.5dB. Channel isolation ≥ 50dB, operating temperature -40 ~+75 ºC .Maximum speed is 60rpm, and the operating lifespan is ≥ 5 million rotations. Installation diameter is 32mm, which is convenient for conductive slip ring integration and assembly.
Main Technical Performance
| Product Specification | ||||
| Model | CH1 | CH2 | Starting Torque | 0.05Nm@room temperature |
| Interface Type | SMA-F(50Ω) | SMA-F(50Ω) | Continuous Rotation Torque | 0.05Nm@room temperature |
| Type | I | I | Maximum Speed | 30rpm |
| Operating Frequency | DC-18GHz | DC-5GHz | Minimum Operating Life | 5 million rotations |
| Peak Power | 500W | 500W | Housing Material | Aluminum Alloy |
| Average Power | 10W | 5W | Surface Treatment | Conductive Oxidation |
| Voltage Standing Wave Ratio, maximum | 1.35@DC-8GHz 1.5@8-18GHz | 2.5@DC-8GHz 4.5@8-18GHz | Approximate Weight | 130g |
| Voltage Standing Wave Ratio maximum fluctuation | 0.1@DC-18GHz | 0.4@DC-8GHz 2.0@8-18GHz | Protection Class | IP51 |
| Insertion Loss, maximum | 1.2dB@DC- 18GHz | 1.0dB@DC-8GHz 3.5dB@8-18GHz | Operating Temperature | -40ºC~ +75ºC |
Insertion Loss maximum fluctuation | 0.15dB@DC- 18GHz | 0.35dB@DC- 8GHz 1.5dB@8- 18GHz | Storage Temperature | -45ºC~ +80ºC |
Phase Variation, maximum | 0.5° @DC-8GHz 1.5° @8-18GHz | 10° @DC-12GHz 25° 12-18GHz | Maximum Relative Humidity in Operating Environment | ≤95%RH |
Isolation Degree, minimum | 50dB | Maximum Relative Humidity in Storage Environment | ≤95%RH | |

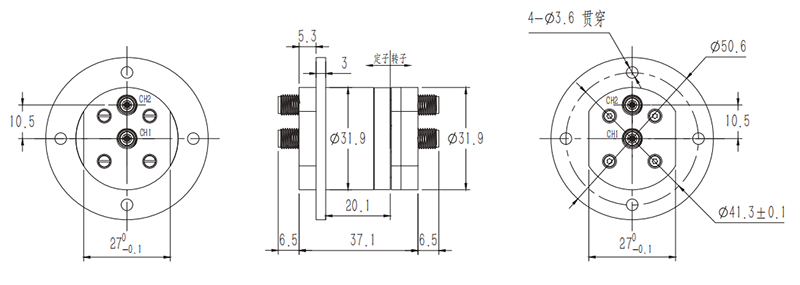

SRF-204 Dimensions
