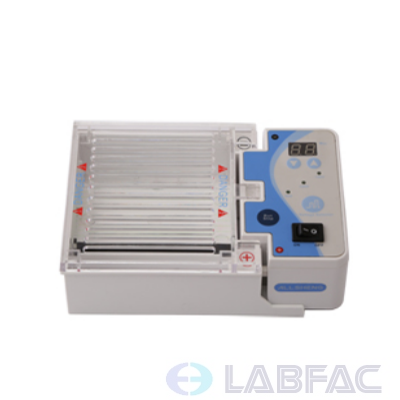

Mini-ES Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages 35V or 50V or 100V, compact, lightweight and easy to operate are its features.
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, current is immediately shut down. It's ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis, Microsatellite analysis PCR fragment analysis, DNA fingerprinting and HIgh-throughput analysis.
Features:
1. Input Power: AC100~120V 50~60Hz
OR AC220~240V with transformer 50~60Hz
2. Output Power: DC35V / DC50V / DC100V
3. Bath Dimensions (W x D x H)：110x121x43mm
4. Volume of Bath: 230ml
5. Construction of Bath: PC+ABS
6. Max.Power: 40W
7. Timer: 0~99min
8. Overall Dimensions (W x D x H): 190x130x60mm
Accessories:
1. Tooth wide (width x thickness x no.): 3mm x 1mm x 22
5.6mm x 1mm x 12
3mm x 1mm x 18
5.6mm x 1mm x 10
2. Gel Dimension (WxD)：126x126mm -- 1pcs
3. Gel Migration Board (WxD)：110x60mm -- 2pcs
54 x 60mm -- 4pcs
4. Transformer: AC220V (Input) / AC110V (Output) -- for AC220~240V's state
Code Description:
LAB-14010-00 AC100~120V 50~60Hz
LAB -14020-00 AC220~240V 50~60Hz
