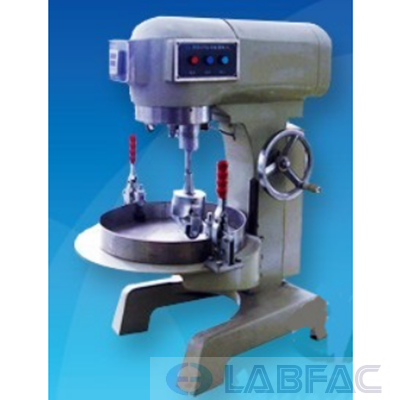

Wet Wheel Abrasion Loss Tester

Model: HW-SYD-0752
The rotating speed of electric motor :1400rpm
Auto-rotation rate of the wheel head :140rpm
Revolution rate of the wheel head :61rpm
Product description: Wet Wheel Abrasion Loss Tester
INQUIRY

for Slurry Mixtures ” in the Industrial Standard of People’s Republic of China JTG E20-2011. It is suitable to determine the compatibility and water detrimental resistance of the slurry surfacing mixtures after molding. It can determine the best asphalt content of mixtures together with the load wheel rolling test.

I. Main technical characteristics

1. The instrument adopts floor type structure , it has novel design and stable structure. It is convenient to use.

2. The structure design of the instrument , the specification size of the test apparatus , act , each meets the requirement of T0752 standard.

II. Main technical specifications

1. The rotating speed of electric motor :1400rpm

2. Auto-rotation rate of the wheel head :140rpm

3. Revolution rate of the wheel head :61rpm

4. The weight of the wheel head :2. 27kg(working quality)

5. The length of the rubber hose for wheel head :127mm

6. Timing :5 min timing

7. Dimension :620mm*500mm*780mm

8. Weight :260kg
