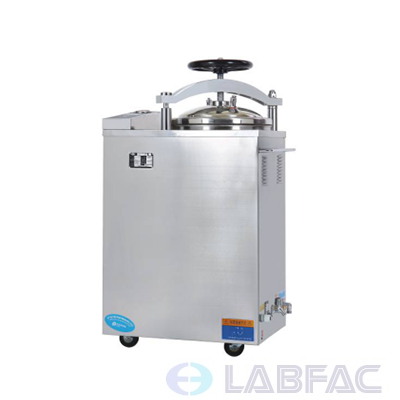

Vertical Pressure Steam Sterilizer

  • Vertical Pressuer Steam Sterilizer
Vertical Pressuer Steam Sterilizer

Vertical Pressuer Steam Sterilizer

  • Model: VAC-LS-50HV/75HV/100HV
  • The chamber of the sterilizer is made of stainless steel
  • Indicator light indicates working state
  • Over temperature & over pressure auto-protection
  • Product description: Vertical Pressuer Steam Sterilizer
  • INQUIRY

Characteristics

1.  The chamber of the sterilizer is made of stainless steel
2.  Indicator light indicates working state

3.  Over temperature & over pressure auto-protection

4.  Safe protection of water lacking

5.  Double scale indication pressure gauge

6.  Automatically shut off with beep reminding after sterilization
7.  Easy to operatesafe and reliable
8.  With two stainless steel sterilizing baskets

9.  VAC-LS-75V and VAC-LS-100V has pulse vacuum function.


Technical Data:

Technical data

VAC-LS-50HV

VAC-LS-75HV

VAC-LS-100HV

Sterilizing chamber volume

50L

(φ340×550)mm

75L

(φ400×600)mm

100L

(φ440×650)mm

working pressure

0.22MPa

0.22MPa

working temperature

134

134

Max. working pressure

0.23 Mpa

0.23 Mpa

Temperature uniformity

≤±1

≤±1

Time of sterilization

199min

199min

Adjustment of temperature

0134

0134

Power

  3000W/AC220V.50Hz

4500W/AC220V.50Hz

5000W/AC220V.50Hz

Dimension

690×470×1140(mm)

730×510×1270(mm)

780×560×1310(mm)

Transport dimension

760×550×1290(mm)

820×600×1380(mm)

870×650×1430(mm)

G.W/N.W

120Kg/ 100Kg

140Kg/118Kg

155Kg/130Kg
