Cabinet & Clean Bench

  • Vertical Flow Clean Bench/Fume Hood

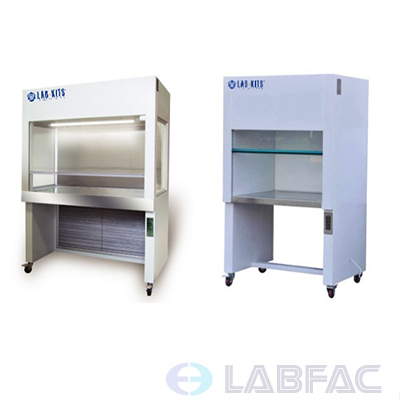

Vertical Flow Clean Bench/Fume Hood

Vertical Flow Clean Bench/Fume Hood

  • Model: CB-LCB-1300VU/1F(-1FD)/ 2F(2FD)
  • Stainless steel board
  • Large LCD screen to display air flow
  • Spring-type sliding door
  • Product description: Vertical Flow Clean Bench/Fume Hood
  • INQUIRY

Features

☆ Vertical type, special designed table top, effectively prevent the external air into the cleaning work chamber and ensure the safety of the operator.

☆ Stainless steel board, Large LCD screen to display air flow, working time, pressure difference, working status, etc.

☆ Highly efficient ironclad centrifugal fan with the features of stable work and low noise.

☆ Spring-type sliding door, can be positioned freely within the specified range.


Specifications:

Model

CB-LCB-1F

CB-LCB-1FD

CB-LCB-2F

CB-LCB-2FD

CB-LCB-1300VU

Applicable Station

1F:one person two side

1FDone person one side

2Ftwo person two sides

2FDtwo-person one side

two-person one side

Airflow Direction

Vertical

Clean Level

Class 100@≥0.5um (U.S.Federal 209E)

Wind speed

0.3~0.6m/s (Recommended speed: 0.5m/s)

Colony Count

≤0.5/vessel (Petri dish: φ90mm)

Noise Level

≤62dB(A)

Power Supply

AC220V/50Hz

Illumination Intensity

≥300Lx

Vibration Semi-Peak Value

≤3um

≤5um

≤4um

Maximum Power

0.4Kw

0.8Kw

0.8Kw

N.W. / G. W.(Kg)

80/130

130/210

130/210

Interior Size(W*D*H) cm

87*70*52

136*70*52

112*65*72

Exterior Size (W*D*H) cm

99*72*166

148*72*166

136*80*180

Package Size (W*D*H) cm

114×86×186

164×86×186

144×94×191

HEPA Filter

820×600×50 one pc

1310×600×50 one pc

610×610×50 two pcs

Fluorescent lamp

20W*1

20W*2

30W*1

UV lamp

20W*1

20W*2

30W*1
