Features:
l FD-100F freeze dryer, which the freeze-drying area is 1.0 and 2.0, square box structure, is suitable for freeze-dreyubg of lab samples for units production.
l FD-100F freeze dryer is that large-screen LCD display and the freeze-drying curve is programmable.
l FD-100F freeze dryer adopts double compressor, cold trap temperature is -70℃,samples may be pre-freezed and dried directly on the board

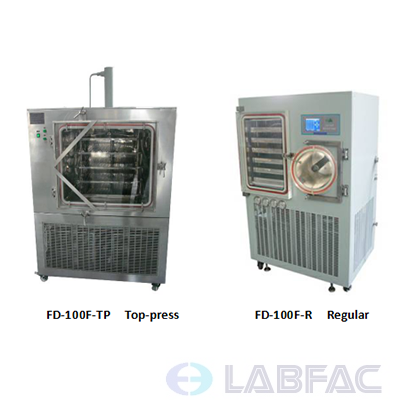

l FD-100F freeze dryer include two types: Regular and top-press.
Main characteristics:
1. The process of pre-freezing and drying finishes in situ, the freeze dryer is equipped with observation windows and the drying process is intuitive.
2. The temperature is less than or equal 1℃.The drying effect is uniform.
3. The partition-board temperature is adjustable and controlled.
4. The drying chamber and cold trap is separated so the water-capture capability is higher and the drying time is shorter.
5. Touching-screen operation, PID controlling, display drying curve.
6. The sample trap is square so it’s easy to clean and operate.
7. Valve with nitrogen is optional.
8. The drying chamber adopts transparent organic glass door the changing process of material is clear.
9. The automatic top-press device and test device are optional.
Technical Parameters:
|
|
Model |
Unit |
FD-100F-R |
FD-100F-TP |
||
|
|
Specification |
Regular |
Top-press |
|||
|
Drying chamber |
Freeze-drying area |
㎡ |
1.0 |
|||
|
Layers of partition board |
layer |
6+1 |
4+1 |
|||
|
Temperature scope of partition board |
℃ |
-50~70 |
||||
|
Partition board’s temperature difference |
℃ |
+/-1(balance) |
||||
|
Size of partition board |
Mm |
360*480*15 |
600*480*15 |
|||
|
Partition board space |
mm |
70 |
100 |
|||
|
φ22 Bottle |
piece |
2016 |
||||
|
φ16Bottle |
piece |
3960 |
||||
|
φ14 Bottle |
piece |
7200 |
||||
|
Cold trap |
Cold trap temperature |
℃ |
<=-70 |
|||
|
Water-capture capability |
Kg/24h |
15 |
||||
|
Material |
L |
15 |
||||
|
Electric defrost |
- |
Yes |
||||
|
Basic parameters |
Vacuum degree |
Pa |
<=10 |
|||
|
Style of top-press |
- |
- |
hydraulic pressure |
|||
|
Style of cooling |
- |
Cooling ventilation room temperature<=25℃ |
||||
|
Dimension |
mm |
1030*750*1700 |
1000*1200*(1700+600) |
|||
