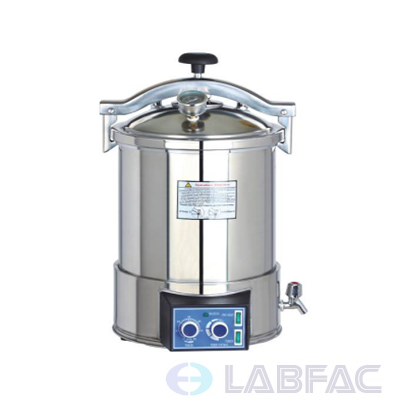

Characteristics:
1. Fully stainless steel structure.
2. Hand wheel type of quick-open door structure.
3. Electric or LPG heated.
4. Working pressure: 0.14~0.16MPa.
5. Working temperature: 126℃.
6. Double scale indication pressure gauge.
7. Easy to operate, safe and reliable.
Technical data:
Technical Data |
PAC-YX-18HDJ |
PAC-YX-24HDJ |
Sterilizing room volume |
18L |
24L |
Working pressure |
0.14-0.16MPa |
|
Working temperature |
126℃ |
|
Temperature adjust range |
105℃-126℃ |
|
Timer range |
0-60min |
|
Max. safety pressure |
0.165Mpa |
|
Heat average |
≤±1℃ |
|
Power |
AC220V.50Hz / 2KW |
|
Dimension |
410×410×630 mm |
410×410×750 mm |
G.W/N. W |
13/12 KG |
15/14 KG |
