Introduction:
The instrument is the special equipment for determination of aniline point. It is adding the provision volume of aniline and sample volume placed in the U-tube and stirred with a mechanical to cause mixing, through continuous heating and stirring until two-phase are completely mixed, mixture was then gradually cooled, when two-phase in separation the temperature of the recording is the aniline point.
Technical Specifications
Description |
Parameters |
The input power supply |
220V ± 10% 50HZ |
Heating power: |
600W |
Measuring range: |
0 ~ 100 ℃ |
The amount of each sample aniline |
10ml |
The ambient temperature: |
About room temperature 25 ℃ |
Relative humidity |
<85% RH |

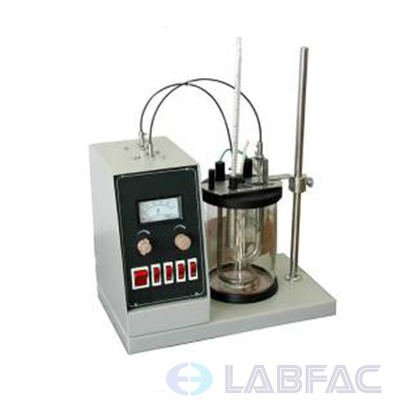

Note: The instrument consists of electrical control box, oil bath, U-tube, metal hood, a stirrer and a bracket and so on, with a small, reasonable structure, convenient operation, it is an ideal test instrument.
