PCB Cutting Machine

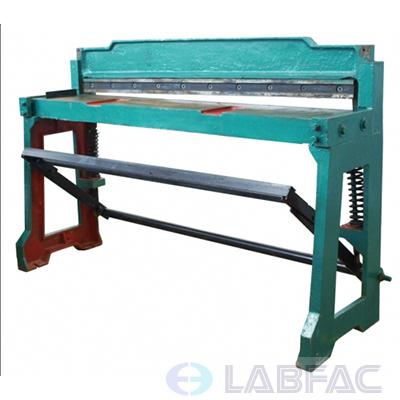

Pedal-powered Cutting Machine

Specifications:

Product usage: fast cutting of copper clad;
Cutting materials: suit fast cutting of 0.5-3 mm all kinds of thin metal sheet (copper, aluminum and etc) and 0.5-5 mm all kinds of soft sheet (PVC, PP, copper clad, composite board and etc);
The machine adopts cast iron manufacturing, making cutting board process more smooth;
Cutting board method: pedal-powered cutting board;
The biggest cutting plate width: 1200mm;
The biggest cutting plate length: unlimited;
The biggest cutting plate thickness: 5mm;
Cutting tool material: high-speed tool steel;
With transparent protective covering to protect the operator from direct contact to the blade;
Overall dimension: length 1200mm×width 400mm×height940mm;
Weight: 150KG.
