Features:
PC housing, Gel KCL, non-refillable. Platinum ring is easy for cleaning and polishing.301Pt-C
Glass housing, refillable KCL. Platinum ring is easy for cleaning and polishing.3501Pt-C
PC housing, gel KCL, non-refillable;301-C
Applications:
Lab. and in-field use, ideal for use in general water solutions, waste water and electroplating solution.301Pt-C
Suitable for general water solutions, waste water, electroplating solution and organic sample solution, higher temperature solutions and continuous measuring.3501Pt-C
for use in general water solutions and waste water.301-C
Parameters

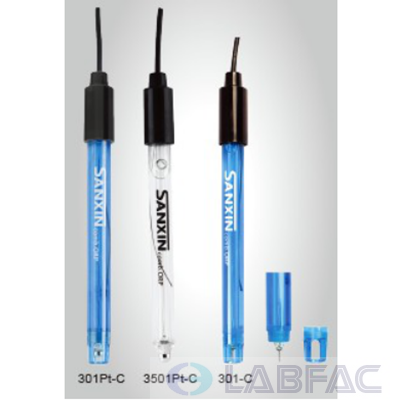

Model |
301Pt-C |
3501Pt-C |
301-C |
||
Name |
ORP Combination Electrode |
Glass ORP Combination Electrode |
ORP Combination Electrode |
||
Junction |
ceramic |
||||
Reference |
Ag/AgCl |
||||
Dimensions |
Φ12 x 160mm |
Φ6 x 2.5 platinum ring |
Φ12 x 160mm |
||
Connector |
BNC |
||||
Body |
PC |
Glass |
PC |
||
Sensor |
Φ6 x 2.5 platinum ring |
Φ6 x 2.5 platinum ring |
Φ1 x 5mm platinum needle |
