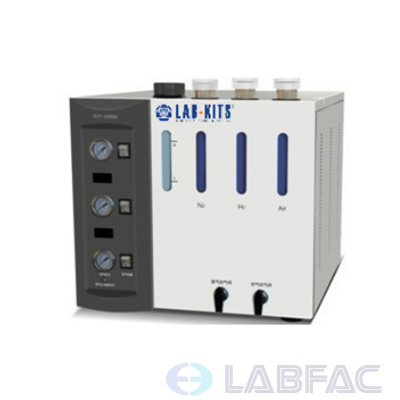

Provide high-purity nitrogen, high purity hydrogen, clean air, the collection of single functions in one, three independent power supply switches can be opened and closed, respectively. More convenient human-computer interaction, more beautiful image design, can easily cope with the continuous work of large load uninterrupted access to standard features and have a good user experience. Because of its technology is mature, safe and easy to use, low gas production costs, high purity characteristics of an ideal alternative to the cylinder, more and more laboratories are chosen, making the protection of expensive and dangerous high-pressure cylinders completely bid farewell to your laboratory.
Parameters
|
Model |
AG-HLPT-300NHA |
AG-HLPT-500NHA |
|
Export |
Nitrogen: oxygen content ≦ 3 PPM Hydrogen: purity≥99.9996﹪ Air: Level 4 filter clean air |
|
|
Maximum gas production |
Nitrogen:350ml/min Hydrogen:350ml/min Air:3L/min |
|
|
Output pressure |
Nitrogen:0-0.4Mpa Hydrogen:0.4Mpa Air:0-0.4Mpa |
|
|
Decontamination chamber |
Visual and interchangeable core |
|
|
Output control pressure |
Nitrogen and air: Pressure reducing valve + equalizer valve Hydrogen: Optical voltage control + mechanical pressure control |
|
|
Dimensions(mm) |
520*480*480 |
|
|
Others |
Flow display, pressure display, Liquid Level backlight, lack liquid Protection, convenient exhaust, automatic emptying, automatic discharge |
|
