Introduction:
For the actual colloid determination of motor gasoline and distillate fuels for the preparation of a volatile in test, it can also be used to determine motor gasoline unwashed colloid content.

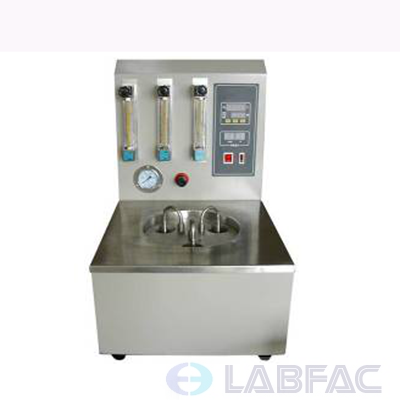

The instrument uses a desktop configuration, intelligent digital temperature controller for temperature control, direct control by air flow meter, timer display blowing time, alarming to 30 minutes, easy to use, reliable performance, and with over-temperature protection circuit.
In addition, the instrument equipped with an air filter regulator tank, air compressor inlet air can be filtered and dried, so that the gas blowing out clean.
Technical Specifications
|
Description |
Parameters |
|
Power voltage |
220V± 10% 50HZ |
|
Heating power |
1.5KW |
|
Temperature control point: |
162 ± 2 ℃ |
|
Temperature range: |
Room temperature ~ 200 ℃ |
|
The temperature measurement element: |
Pt100 |
|
Temperature control accuracy: |
≤ ± 2 ℃ |
|
Determination of holes: |
3 holes |
|
Air flow meter: |
10 ~ 80L / min (3 hole) |
|
Dimensions: |
(L × W × H) 400 × 440 × 600mm |
|
Ambient temperature |
About 25 ℃ |
|
Relative humidity: |
<85% RH |
