Product profile:

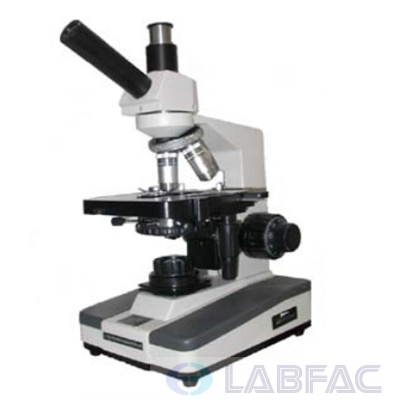

Biological microscope is widely used is medical and health institutions, laboratory, farming Science Research Institute, research institutions and universities. It do the jobs such as observation in biology, bacteriology and pathology; Teaching and professional research; clinic experiments and routine medical inspection and so on. This instrument is novelty in design and adopted a lot of advanced technologies. It is easy to operate, safe and reliable.
Technical parameter:
1. Object lens
category:achromatic objective
magnification:4X、10X、40X、100X（oil）
numerical aperture（NA）:0.10、0.25、0.65、1.25
2. Eyepiece
magnification:10X、16X
vision field diameter（mm):18、11
3. Total magnification:40X-1600X
4. Mechanical tube length:160mm
5. Adjustable condenser numerical aperture（NA）:1.2
6. Coarse jiggle focusing range:15mm, jiggle range:0.002mm
7. Motorized stage:120*120mm，moving range:76*50mm ，cursore:0.1mm
Complete sets of equipment:
1. Mainframe: 1
2. Achromatic objective 4X、10X、40X、100X(oil): each has one
3. V eyepiece tube: 1
4. Eyepiece:10X、16X: each has one
5. Filter（blue, green, yellow: each has one
6. Object lens immersion oil（cogasin）:1
7. Bulb 6V20W: 1
8. Random file: 1
Optional accessories:
Adepter lens, CCD, Digital camera, Capture card, Digital cameras, Image analysis software and so on
