Microcomputer control electronic universal testing machine 15kn

Functions and Features:

WDW-15 is a new generation of microcomputer controlled electronic universal testing machine.It is mainly used for testing mechanical performance indexes of various metals, nonmetals and composite materials such as stretching, compression, bending, shearing, peeling, tearing, etc.The system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measuring range, and has higher accuracy and sensitivity in the measurement and control of load and displacement.The equipment is suitable for manufacturing industries such as metals, adhesives, pipes, profiles, aerospace, petrochemical industry, waterproof coiled materials, wires and cables, textiles, fibers, rubber, ceramics, food, medical packaging, geotextiles, films, wood, paper and other manufacturing industries as well as product quality supervision departments at all levels. It is also suitable for teaching demonstration work in colleges and universities.

The design of the testing machine host has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise and high efficiency.The design of the auxiliary tool is matched with that of the main machine, and the structure is wedge-shaped translational type and manual rotary clamping, so that the sample is not subjected to additional force.Clamping is convenient, reliable and does not slip.

Product structure and performance:

1. Host structure:

The main machine is connected to the worktable by an upper crossbeam, a moving crossbeam and an upright post and a ball screw to form a rigid floor-type frame structure; a domestic AC servo motor and an AC servo speed regulating system are installed below the worktable; and the AC servo motor drives the double ball screw to rotate through a synchronous toothed belt speed reducing mechanism, so that the moving crossbeam is driven to move up and down to realize loading and testing of samples.

2.  System composition:

The system consists of high-precision sensors, high-precision electronic extensometer (optional), servo motor, special independent controller, special measurement and control software and HP mainstream brand microcomputer.

3.  EVOTest Special Measurement and Control Software

EVOTest (Electronic)  special measurement and control software has a multifunctional software package. It can select suitable test software according to the requirements of users in different industries to meet the testing standards in various industries. It has modular and open design. It not only provides the commonly used basic test solution results of GB, ASTM, DIN, ISO, JIS and other standards, but also allows users to design different calculation formulas according to their own requirements to solve the required results. It also provides a test report template that allows users to freely design formats to meet the user's personalized needs and styles of test reports.The user interface supports Windows operating system,

Operating interface: the operating interface is simple and easy to understand, and is displayed in English or Russian, which is a learning-by-learning software operation;

Equipment management functions: equipment parameter setting, equipment online or offline management, controller parameter setting, PID parameter online or offline adjustment, sensor direction identification, sensor default calibration, sensor calibration, sensor verification and other functions;

Wizard scheme editing: By editing the operation scheme, multiple control modes such as force control, displacement control, deformation control and the like can be combined to operate, thus meeting the requirements of any static test operation.Test parameters can be set, such as operation parameter setting, sample parameter setting, operation condition setting and test result project management.Can carry out test operation management, such as starting test operation, test operation process management, test status management and indication display management, etc.;

Supporting data uploading system: It has more than 20 kinds of commonly used data uploading interfaces in China and has the function of expanding support.

 Curve management and analysis:

During the test run, the test process is displayed in real time through single graph or multi-graph curves;

In the non-test running state, single or multiple test curves are displayed through query mode;

Curve coordinates can be preset or set online.

Test data can be traversed through curves.

The curve can be translated, scaled, etc.

Feature points can be displayed on curves and can be modified and saved.

The curve can be printed out independently or embedded in the test report.

Test data automatic storage function: Test data are automatically stored to avoid loss of test data due to unexpected shutdown.

Test data query function: can quickly query the previously completed test data and data according to the test time, test scheme and other conditions

Results;

Test report:

Search and manage test data through test data files;

Setting customized test report content and format through report template;

By editing formulas and result items, support for most test standards and test methods can be realized.

After one or more test data files are loaded, a test report is generated according to a report template and can be printed out;

Word and DxcDl report templates are supported and can be edited freely.

Product standard technical parameters:

Product configuration:

(a) Host part:

High-precision load sensor: Guangzhou widely measured 15kN；;

Servo motor and controller: Hangzhou Jiugu;

Precision ball screw pair: ABBA；, Taiwan;

Photoelectric encoder: Jinan Kaisi;

Synchronous belt system: Jinan Chuanbai;

Measurement and control software: EVOTest；;

Desktop computers: HP computers;

Printer: HP

(2) Test accessories:

1.Tensile fixture:

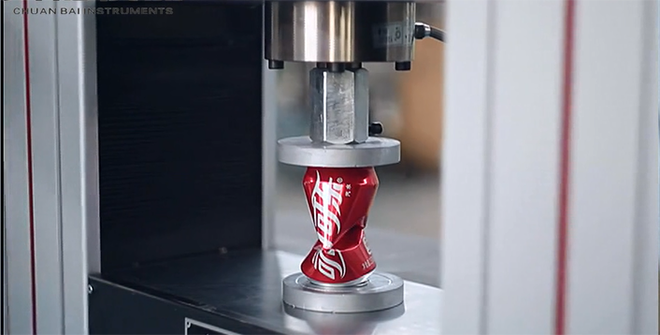

2.Compression fixture:

3.3-point bending fixture:Optional

(3) Other data:

Operating instructions: including operating instructions, packing list, warranty certificate, factory inspection certificate, etc.;

Instructions for use of software: 1 set of paper version and 1 set of software backup CD;

Random data on the original parts of purchased products such as computers and printers: several copies;

Quality Assurance：

Within 1 year from the date of formal delivery of the testing machine, the supplier shall provide timely and free maintenance services for all kinds of failures of the products.All kinds of parts damaged by non-human causes shall be replaced promptly and free of charge.
