Sulphur Content Tester

  • Mercaptan Sulfur Analyzer

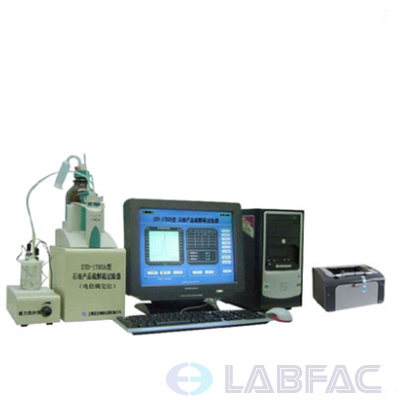

Mercaptan Sulfur Analyzer

Mercaptan Sulfur Analyzer

  • Model: PT-SYD-1792A
  • The automatic degree is high and accurate results
  • Automatic cleaning
  • Automatically determine the end point
  • Product description: Mercaptan Sulfur Analyzer
  • INQUIRY

Summary

The instrument is to determine mercaptan sulfur in petroleum products under the computer. It ensures the accuracy of the results by titration curve smoothing and titration end position correction. It is the laboratory, analysis room and petrochemical research departments of the ideal of the necessary instruments. Standard: GB/T 1792-1988 and ASTM D3227 Distillate fuels--Determination of mercaptan Sulfur (Potentiometric titration method)



I. Main technical features

1. The automatic degree is high and accurate results.

2. Titration apparatus adopts imported key components (Metrohm). Stable and reliable performance, low noise.

3. Automatic cleaning. Automatic constant liquid.

4. Automatically determine the end point, without indicator. Suitable for a variety of petrochemical products in the light and dark oil basic nitrogen analysis. The titration results and automatic data storage, automatic printing, and can provide a complete analysis of titration data for use.

5. Double high impedance input, the electrode potential stability, reliability.



II. Main technical specifications

1. Potential measuring range:( 0±1999.5) Mv

2. Intrinsic error:0.1%±0.5mV

3. Input impedance: Ri≥1×1012Ω

4. Burette capacity:10mL

5. Burette accuracy: ±0.1%( F•S)

6. Titrating time: (60±20) s( F•S)

7. Mercaptan sulfur measuring range:( 3100) μg/g( ppm)

8. Precision:  r=0.00007+0.027X1( X1 is the mean value of two test results., %( m/m) )

9.Power supply:   AC 220V±10V, 50Hz±0.5Hz, Power consumption 300W

10.Ambient temperature: 10℃40℃

12.Relative humidity: ≤85

13.Dimension: 260 mm×380 mm×400 mm (PC is not included)

14.Net weight: 8kg (PC is not included)



PT-SYD-1792A Mercaptan Sulfur Analyzer Accessories and Documents List

No.

Name

Unit

Qty

Memo

1

PT-SYD-1792A Mercaptan Sulfur Analyzer

Set

1



2

Brand computer

Set

1



3

Laser printer

Set

1



4

Exchange unit

Set

1



5

Magnetic stirrer

Set

1



6

Series communication line

Piece

1



7

231 PH electrode

Piece

1



8

Mercaptan electrode

Piece

1



9

Magnetic stir bar

Piece

1



10

Operation Manual

Piece

1



11

Quality Certificate

Piece

1



12

Repair Guarantee

Piece

1

PT-SYD-1792A Mercaptan Sulfur Analyzer's Reagent and Auxiliary Equipment

No.

Name

Specification

Quantity

Memo

1

Potassium iodide

Analytical pure

≥1 bottle



2

Isopropanol

Analytical pure

≥10 bottles



3

Silver nitrate

Analytical pure

1 bottle



4

Crystalline sodium acetate or anhydrous sodium acetate

Analytical pure

≥1 bottle



5

Glacial acetic acid

Analytical pure

≥1 bottle



6

Electronic balance

Precision: ten thousandth

1 set



7

Pippete

5mL

2 pieces



8

Measuring cylinder

50mL

2 pieces



9

Volumetric flask

1000 mL, brown

2 pieces



10

Volumetric flask

1000 mL, white

2 pieces



11

Ear washing bulb



1 piece



12

Beaker

200ml

2 pieces




Notes
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
