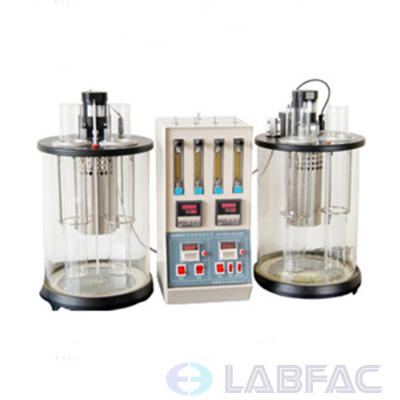

Lubricant Foam Performance Tester

Model: PT-FDT-1103
Product description: Lubricant Foam Performance Tester
INQUIRY

Summary:

Lubricant foam properties analyzer is based on national standards ASTM D 892, GB / T12579 design and manufacture of the provisions for the determination of anti-oil, lubricating oil, gear oil, hydraulic oil, the oil tends to foam formation and the degree of stability.

Features

1, The instrument uses a high-precision digital display temperature control mode, with high precision temperature control, intuitive display

2, FDT foam properties with automatic temperature control, automatic timing, air source and the gas flow centralized control system, easy to operate

3, High technology, and is equipped with a digital electronic timing function

4, The instrument uses split, integrated portfolio, easy to move

5, Configure a dedicated refrigeration system to meet the needs of low-temperature experiments

6, Instrument configuration i dedicated environmental air pump system, no external gas source

Technical Parameters

1, power supply voltage: AC220V ± 10% 50Hz

2, FDT foam properties thermostatic bath temperature: 24 ℃ 93.5 ℃

3, The heater power: 2500W (93.5 ℃ bathtub) 800W (24 ℃ bath)

4, Temperature measurement devices: platinum resistance (PT100)
