• Max. heating temperature is 380°C
• High resolution LCD displays actual temperature and speed
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 5L
|
Specifications |

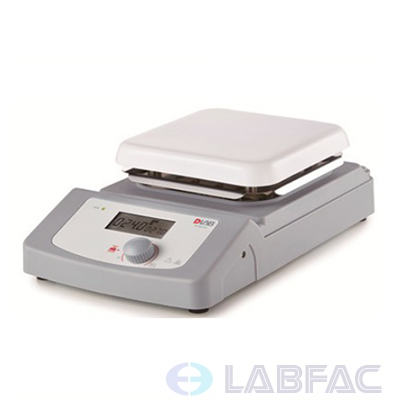

MS-H380 Pro |
|
Work plate Dimension |
140x140mm |
|
Work plate material |
Aluminum cover with ceramic coating |
|
Motor type |
Brushless DC motor |
|
Motor rating input |
2.4W |
|
Motor rating output |
1.8W |
|
Power |
510W |
|
Heating output |
500W |
|
Voltage |
100-120/200-240V 50/60Hz |
|
Stirring positions |
1 |
|
Max. stirring quantity[H2O] |
5L |
|
Max. magnetic bar[length] |
50mm |
|
Speed range |
200-1500rpm |
|
Speed display |
LCD |
|
Temperature display |
LCD |
|
Heating temperature range |
Room temp.+5°C - 380°C |
|
Over heat Protection |
420°C |
|
Temperature display accuracy |
±1°C |
|
External temperature sensor |
PT1000 (accuracy ±0.5°C) |
|
Control accuracy of sensor |
±20rpm |
|
Protection class |
IP21 |
|
Dimension [W x D x H] |
320x180×108mm |
|
Weight |
2.2kg |
|
Permissible ambient temperature and humidity |
5-40°C 80%RH |
