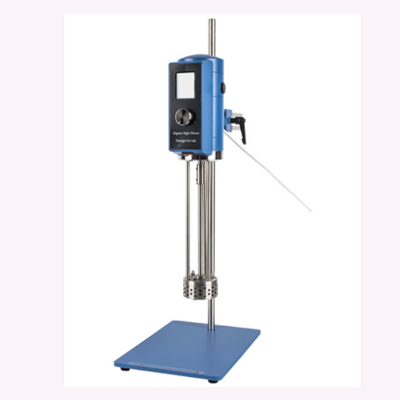

High shear mixer

High shear mixer

  • Model: THR300-28
  • Product description: High shear mixer
  • INQUIRY

Product application
The laboratory high-speed shear dispersion emulsification machine is driven by a compact series excited micro high-speed motor, which is suitable for mixing low to medium and high viscosity liquid in laboratory or pilot plant, and shearing emulsification of crushed particles in liquid medium. The machine is composed of high-density die-casting aluminum alloy as the driving motor, high-quality stainless steel refined shear emulsion working head and speed control controller.



Main characteristics

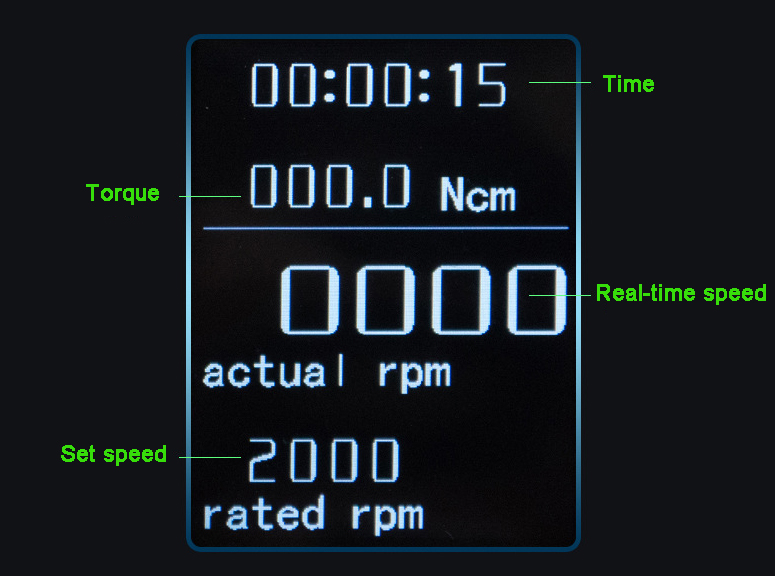

1. The operation state controller adopts stepless speed regulator, and the digital display type adopts rotating button structure, which is convenient for speed regulation and data setting.
2. The driving motor is a series micro motor with high output power and compact structure.

1. The shear emulsion mixing head is made of high-quality stainless steel, which has good corrosion resistance and is easy to be disassembled and replaced with stator.
4. The shear emulsified mixing head is connected with the driving motor by the coupling joint, and the operation is stable at high speed.



Technical Parameter:

Model

THR300-28

Power

300W

Speed display

Digital display

Timer control

6000 mins

Torque

Digital display

Speed range

2000-12000 rpm

Shaft sleeve material

Copper alloy

Processing capacity

20L

Size

350*450*720mm

Input power

500W

Output power

300W

Overall dimension

250x650x720mm

Power supply

AC 230V 50Hz

Rated torque

34.1N.cm



Stator Parameter:

Stator

Name

Output power

Max application viscosity cP



Mesh

300W

5000



Round hole

300W

8000



Oblong hole

300W

10000

Display:

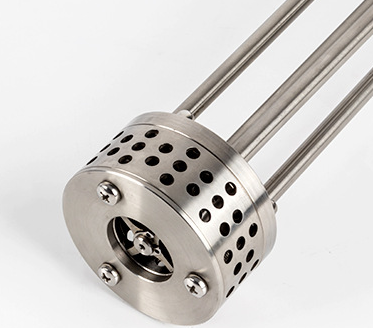

304 Stainless steel working head

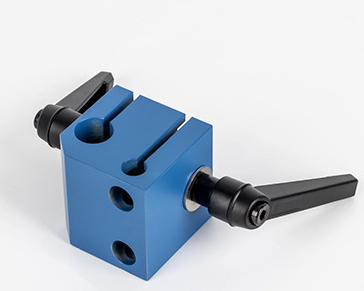

Adjustable fixed head, can be adjusted according to the needs.

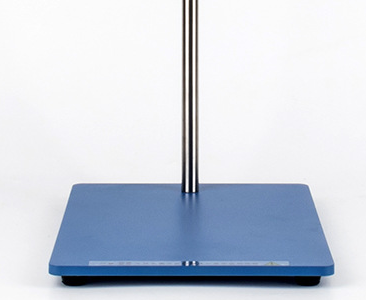

Stable base,good quality

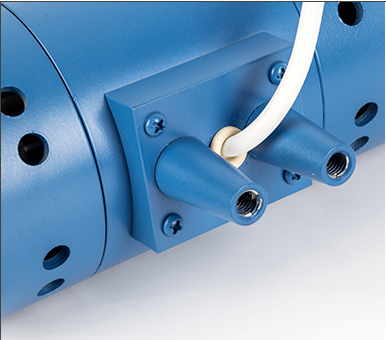

Thermal Design
