Introduction

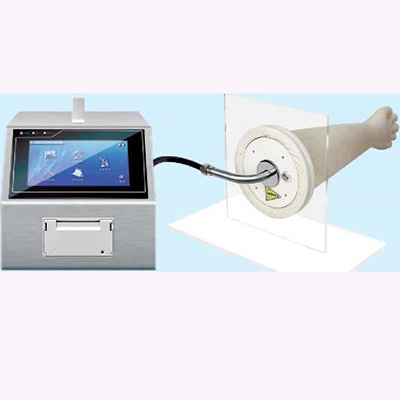

The on-line gloves Integrity tester GT-3.0 is designed according to the positive pressure drop principle proposed by GB/T 25915.7-2010/IS,14644-7:2004, and it is a dedicated to detect the gloves whether leakage. U-THERM INTERNATIONAL has been engaged in the production and sales of filter integrity tester for many years, and the pressure control technology is very mature; at the same time, the authority management and electronic signature design are added, which compliance with FDA 21cfr part 11's requirements; 10000 groups historical records can be stored and instrument with its own printer, test records can be printed and saved in time; simple design, no additional equipment, no need to remove gloves, fast test speed, high test accuracy.
Feature
1. The instrument adopts a small amount of frequent air inlet mode, with uniform inlet velocity in gloves, to avoid gloves deformation.
2. Portable, easy to connect.
3. Historical records can print, storage and query.
4. Instrument with battery and pump for more kinds of room.
Technical Parameters
|
Working power supply |
AC 220V 50Hz |
|
Rated power |
120W |
|
Testing duration |
2-8min |
|
Pressure range |
500-5000Pa |
|
Response value |
< 50Pa |
|
Noise |
< 50dB(A) |
|
Working mode |
Continuous work |
|
External gas source |
Compressed air, nitrogen, inert gas |
|
Sealing pressure |
< 0.8Mpa |
|
Historical record |
10000 groups, also can export by USB |
|
Print Function |
Built-in Printer |
|
Dimensions(mm) |
400*260*270*250 |
|
Weight |
10KG |
|
On-line gloves tray |
Custom-made (one is free) |
|
Audit trail |
operational |
|
Pump |
Oil and water free |
