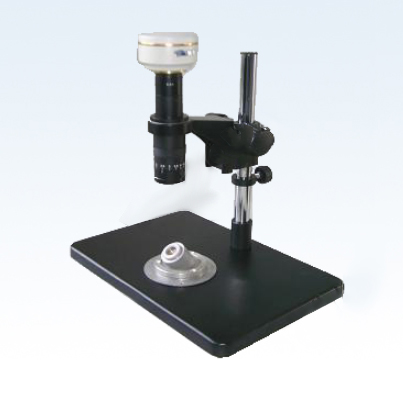

Four-ball wear spot measurement system

Model: MRS
Product description: Four-ball wear spot measurement system
INQUIRY

Description
This wear spot measurement system is a system specifically used for measuring wear spots in MRS series four-ball friction testers.It is a collection of optics, microelectronics, computer technology in one of the high-tech products.Easy and fast to use, high measurement accuracy and good repeatability.It performs wear spot measurement, data processing, inspection report, file saving and report printing together.In addition, you can process, edit, mark the image of the wear spot, and save the image as an image file.

This system eliminates the measurement error and the empty-back error caused by the operator's different eyesight to the maximum extent. It also reduces the repeated adjustment of the instrument and speeds up the measurement. It can be used for many people to observe, teaching and discussion, is a good helper in the experiment

Technical Parameters

No.	Items	Technical parameters
1	Measuring range	2.5x objective lens up to 2mm
2	Measurement error	≤±1%
3	Objective operating distance	2.5x objective lens about 33mm
4	Camera specification	YM200 camera
