Instrument description

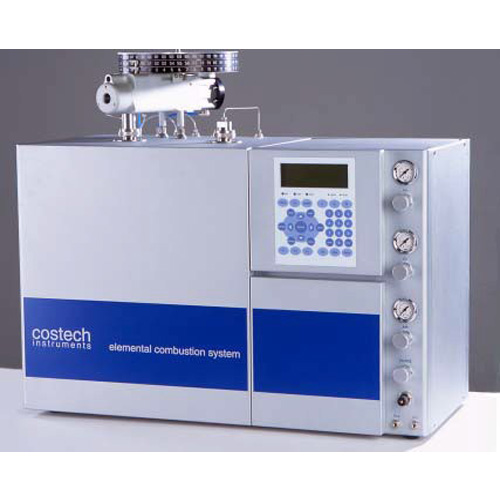

Starting from the basic furnace design; the ECS 4010 has two, large capacity (up to a 26 mm OD reactor) furnaces. Optional fittings let you quickly and easily switch between combustion/reduction reactors of different diameters. You can work with reactors from 10,5 mm to 26 mm OD.
The furnaces are mounted in a specially designed SS enclosure with an extremely efficient insulating material. This keeps the entire cabinet “cool to the touch” and allows the furnaces to heat from ambient to operating temperature in 1.5 hours. The electronics and power supplies are completely isolated from the furnace compartment and have their own separate cooling fan. The ECS monitors, and can display, the temperatures of the power supply, and electronics. It will also display the input line voltage supply.
The ECS 4010 consists of three modules; The first module is the combustion system, the second is the detector system, and the third is the
data handling system. When the three systems are combined the user can choose the required analyti- cal configuration.
The first module consists of sampling, combus- tion and pneumatics. The autosamplers available are a sealed, “Zero Blank” sampler, and an open carousel sampler, where samples can be added continuously. The movement of the “Zero Blank” autosampler is controlled by a microstepping motor. You can choose either a 32 or 50 position carousel through the instrument software, and since it is completely sealed to atmosphere there is no contamination of the samples from nitrogen or oxygen. This is especially useful for stable isotope analysis. The second choice of sampler has carou- sels which are open to the atmosphere, butsamples can be added continuously and the num- ber of sample positions is 147.
The ECS 4010 is equipped with two furnaces. Temperature control of the combustion furnace is up to 1100 oC, and the reduction furnace 800 oC.
The furnace dimensions and special fittings allows you to use a wide variety of reactors to tailor the analyzer to your laboratory needs (small and large samples, CHNS-O analysis, and N/Protein). The connection fittings for the quartz reactors make it fast and easy to replace the inserts in the combus- tion reactors (removal of ash and residue), for longer tube and catalyst life. The unique pneumatic system can be switched between three operating modes; Micro, Semi-Micro and Macro. By select- ing a mode you choose the volume of oxygen for sample combustion. The gases (helium, oxygen and servo) are controlled by reliable SS diaphragm regulators for accurate flow control. Servo gas control is provided for use with our pneumatically actuated autosampler. A separate purge regulator is provided for flexibility in purge gas flow and volume.
The second module is the detector system for measuring the combustion (or pyrolysis) products. These combustion gases can be separated by gaschromatography for CHNS-O analysis, sent directly to the detector system for N/Protein determination, or mass spectrometer for isotopic analysis. For the gas chromatographic technique a high stability oven, with temperature control from 30-110 0C, and a wide range of GC column lengths are available. The TCD (thermal conductivity detector) has been specially designed for this application, special features include; preheating of combustion gases before entering the detector to stabilize gas temperature, and a twin encapsulated filament which requires no reference gas flow. The advantages of the this are; simplicity of the combustion/detector system (low maintenance, minimum down time), efficiency of the combustion, and no splitting or dilution of the combustion gases, all combustion products are measured.
The third module is EAS, our WindowsTM based software package, for instrument control, data acquisition and report generation. A multichannel 24 bit A/D interface connects the ECS to a PC for data acquisition and instrument control. Sample information is entered, the software collects raw data from the TCD, creates the calibration, and generates reports including statistical information. Data can be easily exported to EXCELTM in ASCII format for post-run calculations or exporting to LIMS. A reprocessing software option is available for setting up methods and transferring data from a remote computer, or working with data out of the laboratory. Interface boards can be ordered for 1,2, or 4 channels.
Feature and Benefits
Sampling options
•“Zero Blank” sampler, 32 or 50 positions
•150 position open carousel sampler
•Direct injection (syringe) of gases
Combustion and Reduction Tubes
•Diameters (OD)
10.5 mm 18 mm 20 mm 26 mm
•Simple, easy fittings to change tube diameters.
•Inserts for ash removal
G.C. Oven and Separation Column
•Temperature range 30-110 oC
·Temperature control +/- 0.1 oC
·Standard and custom column lengths for different applications
Dual filament TCD
·No reference gas required
·Pre-heating of combustion gases
EAS Software
•Windows™ 95/98/NT
•Instrument control via RS232
·Export data to Excel™ or LIMS
·Actualizes results
Mass Spectrometer or
Other Detectors
Technical parameters
|
Sample Size (density dependent) |
Micro <1-5 mg Semi-Micro 5-50 mg Macro up to 500 mg of organic material |
|
Measuring Range |
0-100% CHNS-O |
|
Autosamplers |
“Zero Blank”, sealed carousel, microstepper motor 147 position, open carousel, pneumatic |
|
Catalyst consumption |
>1000 Analyses for Micro & Semi-Micro |
|
Dimensions |
79 x 55 x 34 cm |
|
Power |
220V 50/60 Hz |
|
Software |
WindowsTM 95/98/2000/NT |
Part Numbers
|
40.11.001 |
Base Unit configured for pneumatic autosampler |
|
40.10.001 |
Base Unit configured for pneumatic and electronic autosampler |
|
41.10.000 |
Pneumatic autosampler, w/1, 50 position carousel |
|
41.10.100 |
Carousel number 1 |
|
41.10.200 |
Carousel number 2 |
|
41.10.300 |
Carousel number 3 |
|
41.00.001 |
“Zero Blank” Autosampler, w/50 position carousel |
|
41.00.002 |
“Zero Blank” Autosampler, w/32 position carousel |
|
41.00.100 |
Control module for “Zero Blank” Autosampler |
|
41.00.200 |
50 position carousel for the Zero Blank autosampler |
|
41.00.300 |
32 position carousel for the Zero Blank autosampler |
|
41.00.110 |
Isolation valve for Zero Blank autosampler |
|
41.20.001 |
Gas injection device, for combustion tube |
|
41.20.002 |
Direct gas injection device, in-line |
|
42.10.001 |
EAS Software package, includes single channel A/D board, software and cable |
|
42.10.002 |
EAS Software package, includes 2 channel A/D board, software and cable |
