Our factory is mainly to produce the PCB production equipment.
We can provide all the PCB making machines, and the completely PCB production line.
Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.
You can also inform us your PCB size, then we can custom the machine for you!!!!
We can also supply the chemicals and reagents & consumables for the PCBs.
Our PCB making machine video:
https://www.youtube.com/watch?v=sQZVaeKhogs
Specification:

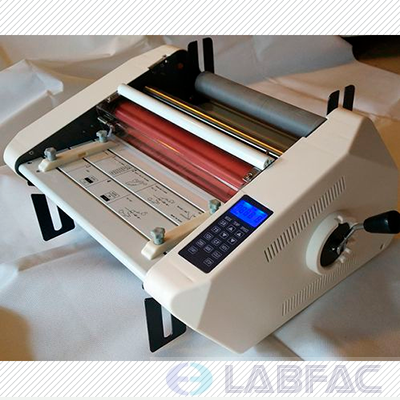

1. Usage: transfer photoreceptive film to the copper-clad board through heating;
2. Control system: PLC + PID control;
3. Film covering mode: special up and down automatic film-collecting device, which can realize double-face automatic board-entering, automatic film-collecting and automatic film-laminating;
4. Effective film-laminating width: 670mm;
5. Film-laminating speed: 500~1500mm/min adjustable;
6. Features : intelligent single-chip microcomputer control , automatic temperature control function.
7. Thermal film-laminating temperature: room temperature~150°adjustable;
8. Display : LCD display
9. Heating mode: inner-heating silicon roller;
10. Heating power: 1500W;
11. Power:220V 50Hz
9. Overall dimension: 720mm×750mm×380mm;
10. Weight: 80Kg.
