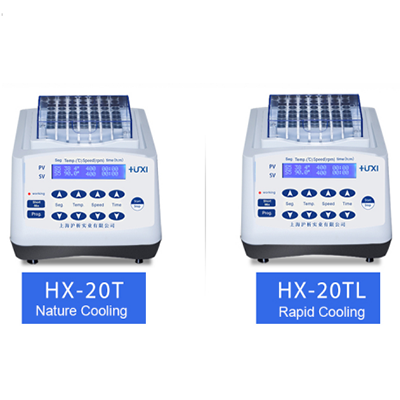

Constant Temperature Mixer

Model

HX-20T

HX-20TL

Temp range

RT+5~100C

0~100C

Time set

1min-100h

1min-100h

Accuracy Display

0.1C

0.1C

Control accuracy

±0.5C

±0.5C

Temp rising time

≤15min(25C to100C)

≤15min(25C to100C)

Cooling time

≤30min(20C to 0C)

≤30min(20C to-10C)

Size

280*200*180mm

280*200*180mm

Net weight

7.2kg

8.5kg

Voltage

AC220V50HZ

AC220V50HZ

Shaking Speed

200-1800rpm

200-1800rpm

Shaking Amplitude

2-3mm

2-3mm

No

Hole diameter&Tubes quantity

Temperature

Hole depth（mm)

Hole diameter(mm)

Lenth&width&height(mm)

LC-A

96*0.2ml standard plate

100°C

17

6

107*71*20

LC-B

54*0.5ml centrifuge tube

100°C

24

8

107*71*25

LC-C

35*1.5ml centrifuge tube

100°C

31

10.04

107*71*32

LC-D

35*2.0ml centrifuge tube

100°C

31

10.5

107*71*32

LC-E

15*1.5ml centrifuge tube

100°C

31

10.5

107*71*32

LC-E

20*0.5ml centrifuge tube

100°C

26

8

107*71*27

LC-F

24 hole* diameter≤Φ12mm tube

100°C

31

12

107*71*32

LC-G

32*0.2ml centrifuge tube

100°C

15

6.5

107*71*15

LC-G

25*1.5ml centrifuge tube

100°C

31

11

107*71*32

LC-H

32*0.2ml centrifuge tube

100°C

17

6

107*71*19

LC-H

10*0.5ml centrifuge tube

100°C

20.5

8

107*71*8

LC-H

15*1.5ml centrifuge tube

100°C

31

11

107*71*32

LC-J

96*0.2ml microplate (elisa plate)

100°C

/

/

107*71*19

LC-K

24*5ml centrifuge tube

100°C

31

13.5

107*71*32

LC-L

12*15ml（rotate speed ≤600rpm)

100°C

99

17

107*71*100

LC-M

6*50ml（rotate speed ≤600rpm)

100°C

99

30

107*71*100

LC-N

15*10ml module

100°C

55

16

107*71*58
