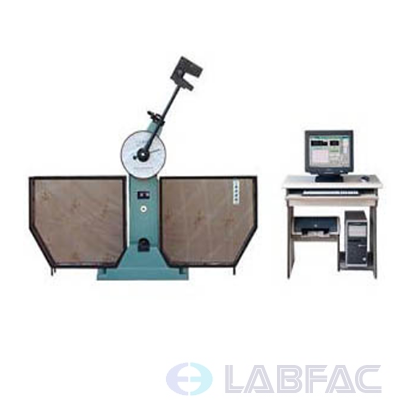

Computer Screen Display Impact Testing Machine

Model: ET-JBW-300B
Impact energy: 150J, 300J
Angle of the Pendulum raises in advance: 150°
Distance from the centre of hammer to impact point: 750mm
Product description: Computer Screen Display Impact Testing Machine
INQUIRY

Function and Characteristics:

This machine is used for test metal material capability which stands against impact at the dynamic loading, so that to judge character at the dynamic loading.

This machine is computer screen display half-automatic impact testing machine, adopts PC computer controls, electric raise the pendulum, impact, computer measure, operation, screen display results and print, high working-efficiency, high testing-precision. The product theory is to present the different of energy before impacting and after impacting on the degree set, through which we can gain the absorbed skill. The advantage of it could be presented better in the sample test. The computer can display and print testing data and average values.

Main Technical Parameters:

1. Impact energy: 150J, 300J
2. Angle of the Pendulum raises in advance: 150°
3. Distance from the centre of hammer to impact point: 750mm
4. Speed of impact: 5.2m/s
5. Span of sample branch seat: 40mm
6. Radius of arc circle of sample branch seat: R1-1.5mm
7. Arc circle radius of impact knife: R2-2.5mm
8. Thickness of impact reamer: 16mm
9. Nip angle of impact reamer: ±0.1°
10. Size of specimen: 10×10×55mm
11. Size of outline: 2124 mm×600 mm×1340 mm
12. Net weight: 450Kg
13. Power: AC 380V±10% 50HZ 5A
14. Working condition: No cauterization medium or no magnetic field to disturb.
