Main Purpose:

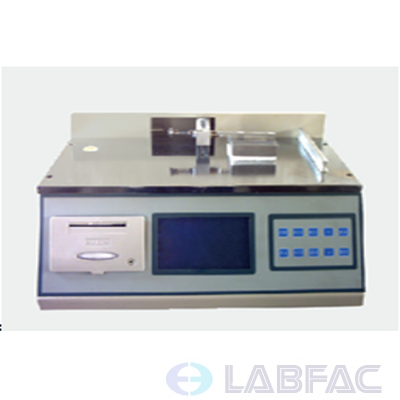

This machine is applicable in the slipping coefficient of friction tests for the paper, plastic film and foil. It can be used to adjust the slip properties and the running speed of the packing machine according to the application requirement of the products.
Function and Characteristics:
·Comply with various international standards.
·Various standard testing methods are optional, include GB, ISO, ASTM..
·Precise angle measurement, high in accuracy.
·Wide testing range and application area.
·Full automatic tests, free from manual operation.
·Flexible motor system, stable running.
·Motor of Continuously variable speed transmission, easy to realize the standard and non-standard tests.
·Micro computer processes the testing data, micro- printer prints out the result.
·LCD display, all procedure, data and parameters are clear.
·Double protecting designs of hardware and software, reliable system
Main Technical Parameters:
Load measuring span: 0-5N
Precision: 0.5 grades
Journey: 70mm, 150mm
Sample quality: 200g (standard)
Testing speed: 100mm/min
Working Condition: temperature 10℃~40℃, temperature 20%RH~70%RH
Power: AC220V 50Hz
Size of outline: 400(L)*300(B)*180(H) mm
Weight: 10Kg
