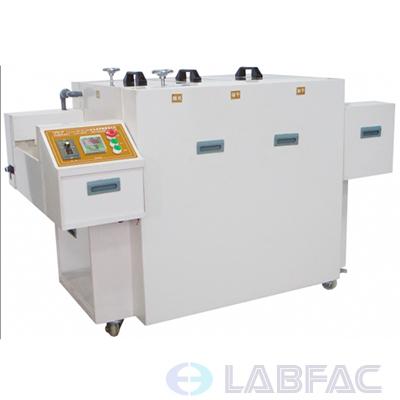

Circuit Board Buffing Machine

Circuit Board Buffing Machine

  • Model: SUNY-ZPG400
  • Product usage: automatic buffing processing of PCB surface
  • Brush board method: single side, double side buffing
  • Brush board thickness: 0.5mm~6mm adjusted through the hand wheel
  • Product description: Circuit Board Buffing Machine
  • INQUIRY

Specification:

  1. Product usage: automatic buffing processing of PCB surface;
  2. Main functions: double screw adjusting wheel; electrical automatic control and water drainage; transmission guide rail dismantling, automatic transmission;
  3. Brush board method: single side, double side buffing;
  4. Brush roller type: Φ110mm 320#;
  5. Brush board dimension: width≤400mm  length≥100mm;
  6. Brush board thickness: 0.5mm~6mm adjusted through the hand wheel;
  7. Transmission motor: 200W, 0.2M~6M/ min stepless speed regulation;
  8. The bottom adopting universal caster wheel, convenient for moving and transportation;
  9. Power supply: AC380V/50Hz;
  10. Drying power: 4KW;
  11. Entire machine power: 5KW(about 1KW with drying function off);
  12. Dimension: 1500mm×850mm×1050mm;
  13. Weight: 138 kg.

Check the video to see how to make the PCB(Printed circuit boards) with our machines:
https://www.youtube.com/watch?v=sQZVaeKhogs

The PCB boards produced by our machines:
