Residue Carbon Tester

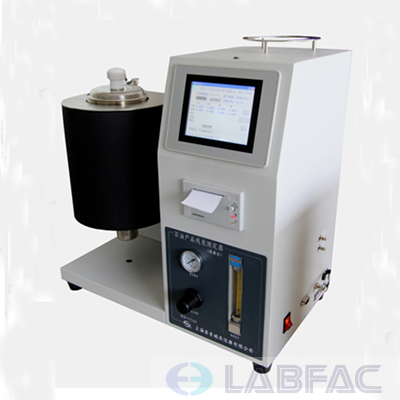

Carbon Residue Tester(Micromethod)

Model: PT-SYD-17144
Power supply: AC (220±10%) V, 50Hz
Maximum power consumption: 1600W
Temperature of coke chamber: 500℃
Product description: Carbon Residue Tester(Micromethod)
INQUIRY

Summary

This instrument is designed and made as per ASTM D4530 and GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micro method. It is suitable to determine the amount of carbon residue of petroleum products.

I. Main technical features

1. This instrument adopts all-in-one structure. It consists of two parts: electrical control chamber and high temperature heating furnace. The design is simple and reasonable.

2. It adopts single chip machine system. The instrument controls the whole procedures automatically according to program preset.

3. The screen adopts all English interface. Operator can do determination by prompts on the screen even no need to read the operation manual. Easy to operate.

4. It controls the flow rate of nitrogen, temperature heating rate and preset temperature automatically. Easy to adjust the flow rate. The heating rate is accurate and temperature control is stable.

5. It collects test data and calculates results automatically. It can print and save the data according to customer’s requirements.

6. The measurement range of this instrument is 0.10%( m/m) ～30.0%( m/m) . The test result is equivalent to Conradson method if the carbon residue is higher than 0.10%(m/m).

7. The instrument can also be used to determine the petroleum products composed of distillate oils which carbon residue is lower than 0.10%(m/m). But the specimen shall be sampling to 10%(V/V) distillation residue according to GB/T6536 firstly.

8. It equips a electric balance to achieve the automation of sample weighing and data input.

II. Main technical specifications

1. Power supply: AC (220±10%) V, 50Hz

2. Maximum power consumption: 1600W

3. Temperature of coke chamber: 500℃

4. Temperature control accuracy: ±2℃

5. Heating power: 1500W

6. Ambient temperature: 5℃～35℃

7. Relative humidity: ≤85%

8. Dimension: 520mm×360mm×525mm

PT-SYD-17144 Carbon Residue Tester (Micromethod) Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	PT-SYD-17144 Carbon Residue Tester (Micromethod)	Set	1
2	12 holes tube holder	Piece	1
3	Big sample tube (Diameter 12×70mm)	Piece	24
4	Small sample tube (Diameter 12×35mm)	Piece	24
5	Test tube rack lift hook	Piece	1
6	Air inlet pipe (ф6 PU pipe, 2m)	Set	1	Used to connect the steel cylinder and main machine
7	Exhaust pipe (ф10PU pipe, 2m)	Piece	1	Used to remove exhaust gas
8	The top cover of raw coke box	Piece	1	Remove packaging from the equipment
9	Serial Line	Piece	1	Electric balance and instrument communication line
10	Fuse 15A (Φ6×30)	Piece	2
11	Electric balance (Weighing range 110g, accuracy grade I, readability 0.1mg)	Set	1	Including technical manual etc.
12	Operation manual	Piece	1
13	Quality certificate	Piece	1
14	Product warranty card	Piece	1

PT-SYD-17144 Carbon Residue Tester (Micro method)'s Reagent and Auxiliary Equipment

No.	Name	Specification	Quantity	Memo
1	Nitrogen	Purity 98.5%	1 bottle	With reducing valve

Notes：
1.The reagent and equipment for installing the instrument are supplied by end-users themselves.
2.The usage, management and saving of poisonous and harmful reagent, pls operate according to the relative principle.
3.PLS read the operation manual and industry standard before using the instrument.
