Centrifuge

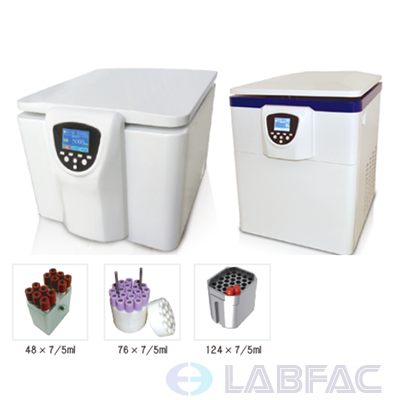

Automatic Uncovering Centrifuge

Features

1. The design of the whole machine is in line with the ergonomics, with streamlining sculpt, better looking and more efficient.

2. Microcomputer-controlled, with a TFT true-color LCD widescreen touch monitor and digital indicator to meet different customers’ requirements.

3. With a complete steel structure and a stainless-steel centrifuge cavity, it is sturdy and durable.

4. Variable-frequency brushless motor that is maintenance and dust-free to achieve quiet and clean operation

5. 10 levels for speed-up and speed-down control.

6. With a motor gate lock mute mechanical & electrical integration.

7. Can store 20 user programmes.

Technical parameters

Model	DD5 (Automatic Uncovering)	DD5M (Automatic Uncovering)	TL5R (Automatic Uncovering)
Blood tube splite quantity	48、76 tubes	124 tubes	124 tubes
Max Speed(r/min)	4000	5000	5500
Max RCF(×g)	3780×g	3780×g	4800×g
Speed precision	±50r/min
Refrigeration system	/	/	Import fluoride-free compressor and control valve(R404a)
Temp. control range	/	/	－20℃～+40℃
Temp. precision	/	/	±1℃
Control and drive system	Frequency motor，micro control，direct driver
Operation programe	20 sets
Time Range	0-99h59min
Power	AC220V 50Hz
Noise	≤65dB(A)
Weight	800w	1000w	2000w
Dimensions(L×W×H)	630×500×420mm	710×560×770mm	710×560×770mm
Weight	50kg	75kg	150kg
